Service Hints & Tips |
Document ID: GSMH-3EQDDW |
TP 365X/XD - 1080 LCD Assembly
Applicable to: World-Wide
1080 LCD Assembly:
Battery Pack (1020)
Insulator Sheet (1025)
Diskette Drive / CD-ROM Drive (1040)
Hard Disk Drive (1050)
Top Cover (1060)
Keyboard Unit (1070)
|

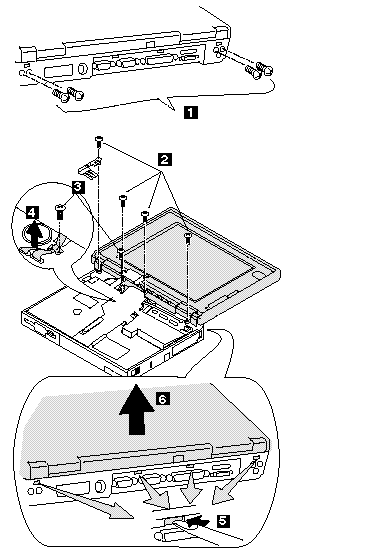

Step |
Screw Location (Quantity) |
Length |
|
1 |
Base Cover (4) |
M3 x 5 mm |
|
2 |
LCD Assembly (4) |
M2 x 5 mm |
|
3 |
LCD Cable (1) |
M3 x 4 mm |
|
Note: |
|
Search Keywords |
| |
|
Hint Category |
Display/Monitor, Hardware Maintenance Information | |
|
Date Created |
28-02-97 | |
|
Last Updated |
19-08-98 | |
|
Revision Date |
18-08-99 | |
|
Brand |
IBM ThinkPad | |
|
Product Family |
ThinkPad 365X/XD | |
|
Machine Type |
2625 | |
|
Model |
Various | |
|
