Service Hints & Tips |
Document ID: GSMH-3DKMAV |
TP Selectadock II - Parts Locations
Applicable to: World-Wide
Locations:

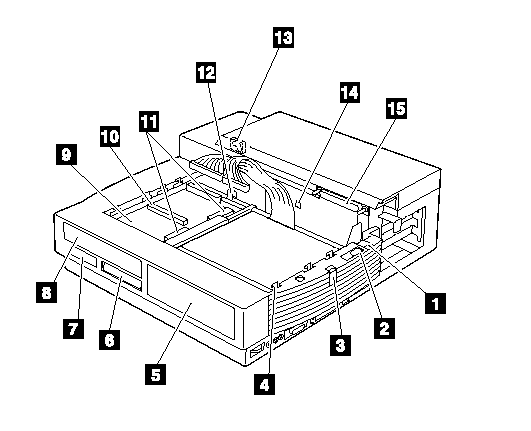

Front View:
|
1 |
Multiuser lock |
|
2 |
PC Card lock |
|
3 |
SelectaDock base lock |
|
4 |
Docking guide |
|
5 |
Half-height bay |
|
6 |
Status indicators |
|
7 |
UltraBay tray eject hole |
|
8 |
1-inch-high bay |
|
9 |
UltraBay tray |
|
10 |
FDD connector |
|
11 |
HDD connector |
|
12 |
UltraBay tray lock |
|
13 |
MicroSaver lock hole |
|
14 |
Game switch |
|
15 |
Docking connector |

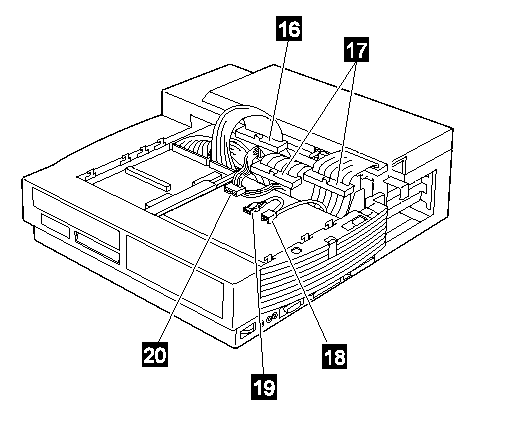

Front View (continue):
|
16 |
IDE connector |
|
17 |
Internal SCSI connector |
|
18 |
Audio device connector |
|
19 |
Audio device connector |
|
20 |
Power supply connector |

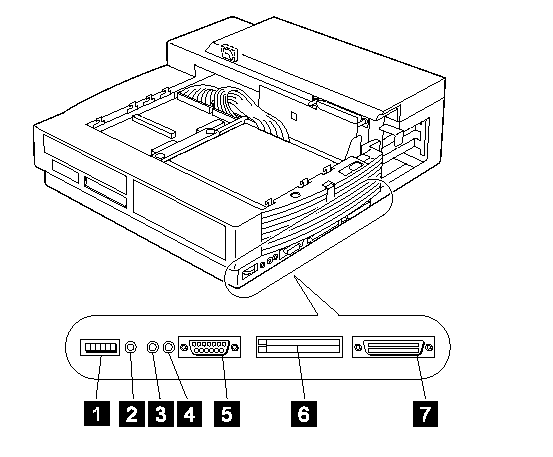

Side View:
|
1 |
Volume knob |
|
2 |
Headphone jack |
|
3 |
Line-out jack |
|
4 |
Speaker-in jack |
|
5 |
MIDI/joystick port |
|
6 |
PCMCIA slots |
|
7 |
SCSI connector |

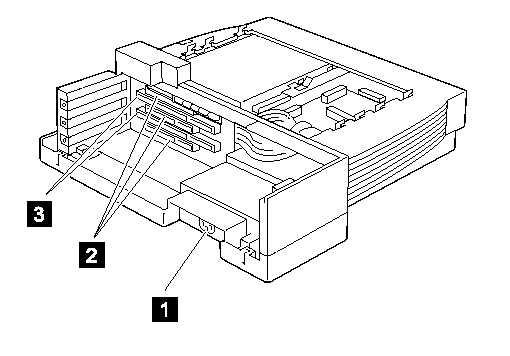

Rear View:
|
1 |
Power jack |
|
2 |
PCI connector |
|
3 |
ISA connector |
|
Search Keywords |
| |
|
Hint Category |
Hardware Maintenance Information | |
|
Date Created |
22-01-97 | |
|
Last Updated |
17-04-98 | |
|
Revision Date |
08-04-99 | |
|
Brand |
IBM ThinkPad | |
|
Product Family |
ThinkPad Docking Stations | |
|
Machine Type |
3547 | |
|
Model |
002 | |
|
TypeModel |
| |
|
Retain Tip (if applicable) |
N/A | |
|
