Netfinity EXP15 - Removal from rack

Applicable to: World-Wide

Source: Hardware Maintenance Manual

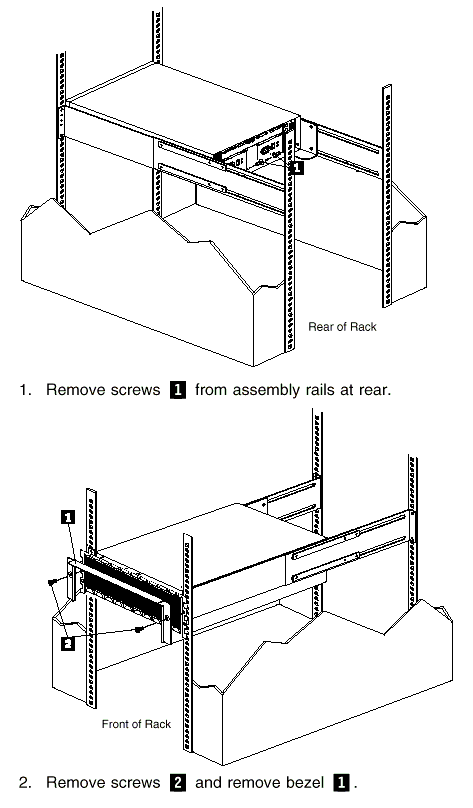

Removal From Rack
The expansion unit should only need to be removed from the rack for replacement of the midplane board/frame assembly. See "Parts Listing" for more information.

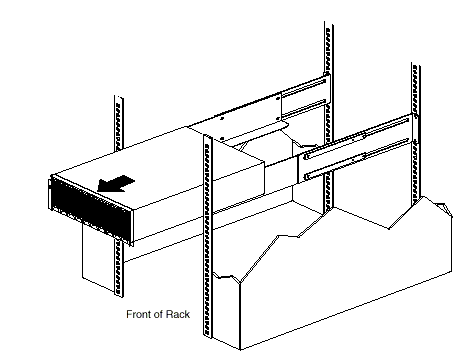

3. Slide expansion unit out of rack.

Note Avoid touching the LED lights when removing the unit to avoid damage to the expansion unit.
