Service Hints & Tips |
Document ID: LWIK-3XPGTT |

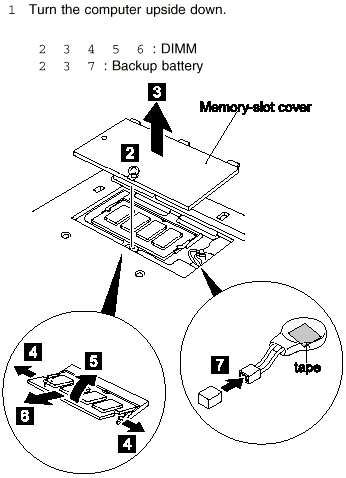

TP 380Z - 1010 DIMM Card and Backup Battery
Applicable to: World-Wide
The following information is intended for IBM Dealers and Authorized Servicers only. Customers attempting to follow any of the procedures below may void their warranty.
CAUTION:
The backup battery is a lithium battery and can cause a fire, an explosion, or severe burns. Do not recharge it, remove its polarized connector, disassemble it, heat it above 100›C (212›F), incinerate it, or expose its cell contents to water. Dispose of the battery as required by local ordinances or regulations. Use of an
incorrect battery can result in ignition or explosion of the battery. Replacement batteries can be ordered from IBM or IBM Authorized Dealers.
When installing:
When installing a new backup battery, place it where the old one was on the printed circuit board (system board) with double-sided adhesive tape.
|
