Service Hints & Tips

Document ID: JBAR-46HRRX

IBM PC730/750 (Type 6877, 6887) - Supported memory configurations

Applicable to: World-Wide

PC 730/750 Series (Type 6877, 6887) - Pentium 100/133/150/166 MHz:
These are the recommended combinations of memory-module kits.

• Each bank must contain a matched pair of SIMMs having the same size and speed.

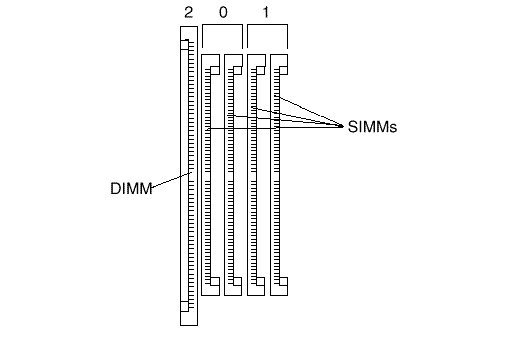

• DIMM (2) and SIMMs (0 and 1) in the following figure correspond to the memory banks (0, 1, and 2).
• Bank 0 and Bank 1 hold matched-pair SIMM memory modules.
• Bank 2 holds DIMM memory modules.

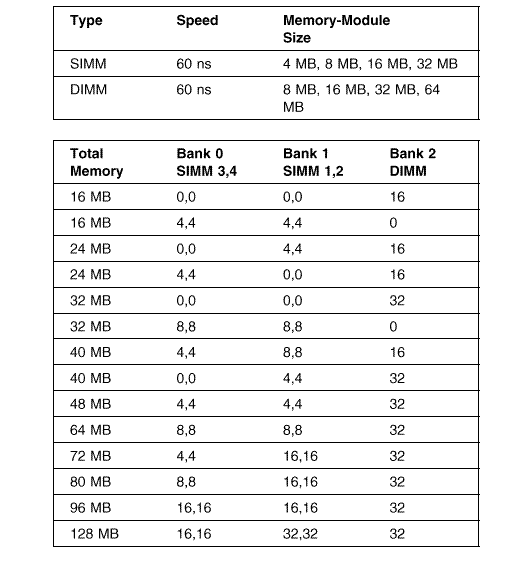

• The banks are filled according to the following memory table.
• When installing SIMM memory, a matched-pair is first loaded into Bank 0, and then into Bank 1 as required.

Important:
Only memory modules with a maximum height of no more than 3.05 cm (1.2 inches) can be installed onthe Type 6877, 6887 system board.
