Parts Information |
Document ID: LWIK-3TTJDM |

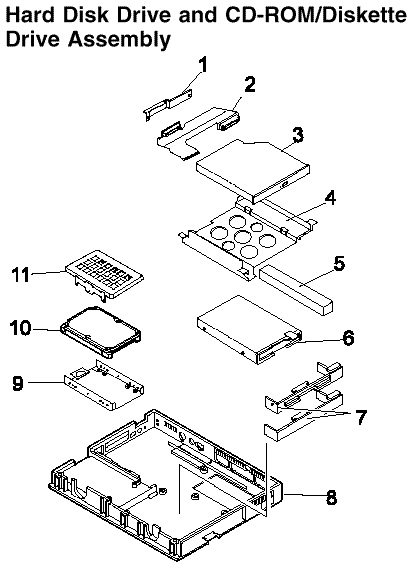

TP 380XD,385XD - FRU HDD and CD-ROM/Diskette listing
Applicable to: World-Wide
|
Index |
Description |
FRU # |
|
1 |
Connector Bracket (included in item# 4 CD/Diskette Drive Bracket) | |
|
2 |
CD/Diskette Drive Connector Assembly |
05K2637 |
|
Diskette Drive Connector Assembly (for non-CD model) |
83H6527 | |
|
3 |
CD-ROM(10 X-24 X) |
05K8868 |
|
4 |
CD/Diskette Drive Bracket Kit |
05K4751 |
|
including: | ||
|
CD/Diskette Drive Bracket (item# 4) | ||
|
Connector Bracket (item# 1) | ||
|
Absorber (item# 5) | ||
|
5 |
Absorber (included in item# 4 CD/Diskette Drive Bracket) | |
|
6 |
Diskette Drive |
11J8338 |
|
7 |
Diskette Drive Bezel |
73H9932 |
|
Blank Bezel (for non-CD model) |
73H9934 | |
|
8 |
Base Cover Assembly |
05K4743 |
|
9 |
HDD Bracket |
05K4752 |
|
10 |
Hard Disk Drive, 2.1 GB (12.5 mm) |
22L0004 |
|
Hard Disk Drive, 3.2 GB (12.5 mm) |
83H7086 | |
|
Hard Disk Drive, 4.0 GB (12.5 mm) |
83H7085 | |
|
Hard Disk Drive, 5.1 GB (17 mm) |
83H7084 | |
|
11 |
HDD Spacer |
05K4776 |
|
Search Keywords |
| |
|
Document Category |
Hardware Maintenance Information | |
|
Date Created |
23-04-98 | |
|
Last Updated |
18-08-98 | |
|
Revision Date |
17-08-99 | |
|
Brand |
IBM ThinkPad | |
|
Product Family |
ThinkPad 380XD, ThinkPad 385XD | |
|
Machine Type |
2635 | |
|
Model |
Various | |
|
