Aptiva - 2144/2168 (SL-C) Diagnostics - Keyboard
Applicable to: World-Wide
___
|001|
|___|
A failing mouse can show up as a keyboard failure.
- Power off the system unit.
- Disconnect the mouse from the system unit.
- Power on the system unit.
DID THE SYMPTOM REMAIN?
Yes No
| |
| |__
| |002|
| |___|
| Replace the failing mouse.
|
|__
|003|
|___|
- Power off the system unit and wait 10 seconds.
- Reinstall the mouse.
- Ensure the keyboard cable is fully inserted into the system unit.
- Remove any foreign objects that may interfere with the mechanical
operation of the keybuttons.
- Power on the system unit.
DID YOU RECEIVE A 3XX POST ERROR?
Yes No
| |
| |__
| |004|
| |___|
| Go to "Start" in topic 2.1.
|
|
|__
|005|
|___|
- Power off the system unit and wait 10 seconds.
- Disconnect the keyboard cable from the system unit.
- Power on the system unit.
- Check the voltage at the keyboard cable connector on the system board,
shown in Figure 2-6, after the POST.
Note: Measure voltages with respect to Ground (Pin 3).

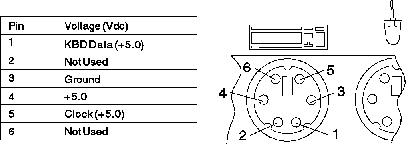

Figure 2-6. Keyboard Connector Voltage Check
ARE THE VOLTAGES CORRECT?
Yes No
| |
| |__
| |006|
| |___|
| Replace the system board.
|
|__
|007|
|___|
Replace the keyboard. If the symptom remains, replace the system board.
--------------------------------------------------------------------------------
