TP 560 - ECA004 Correction to fix scatches on LCD

206.162 bytes

Service Hints & Tips

Document ID: PFAN-3NBNKF

This document is provided to IBM and our Business Partners to help sell and/or service IBM products. It is not to be distributed beyond that audience or used for any other purpose.

TP 560 - ECA004 Correction to fix scatches on LCD

Applicable to: World-Wide

Record number:

H161580

Service code:

33

Device

D/T2640

Parts source:

LOC

ECA number

ECA004

Publishing flag:

R

EC number:

EC999999

Hit count

UHC00033

Mandatory:

N

Success count:

USC0000

Automatic shipment:

N

Publication code:

PC40

Availability date:

97/10

Date created:

O97/10/23

Plant of control:

24

Date last altered:

A98/10/22

Tip key:

Owning B.U.:

USA

ABSTRACT: 2640 ECA004 CORRECTS MOUSE BUTTON SCRATCH TO LCD.

PURPOSE:
Prevent or correct LCD scratches caused by keyboard mouse buttons or trackpoint.

FEATURES:

Type, Model, Stage

With B/M

Machines Affected
and/or
Feature/Device

B/M
to be
Installed

Service Hours

System Hours

2640

B/M9999999

Model 560

B/M9999999

00.4

00.2

PHYSICAL CHECK:
1. The model 560 must have an old level Keyboard as listed below OR
2. An old level LCD Bezel.

NOTE:

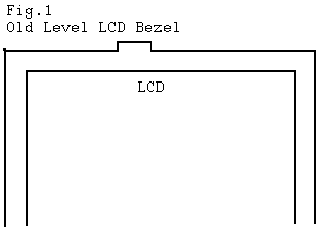

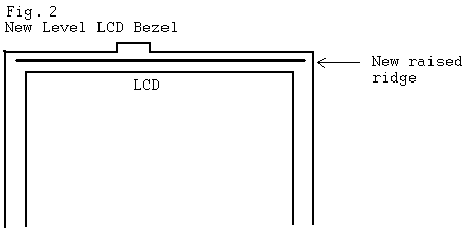

A description of the OLD level Bezel is in Fig 1 and the NEW level is in Fig 2.

OLD LEVEL KEYBOARD FRU P/N

Arabic

P/N46H3885 or P/N20H4232

Belgian

P/N46H3883 or P/N20H4230

Canadian French

P/N46H3890 or P/N20H4237

Danish

P/N46H3877 or P/N20H4225

Dutch

P/N46H3876 or P/N20H4224

French

P/N46H3874 or P/N20H4222

German

P/N46H3873 or P/N20H4221

Greek

P/N46H3888 or P/N20H4235

Hebrew

P/N46H3886 or P/N20H4233

Italian

P/N46H3875 or P/N20H4223

Japanese

P/N46H3892 or P/N20H4239

Latin Spanish

P/N46H3889 or P/N20H4236

Norwegian

P/N46H3879 or P/N20H4227

Portuguese

P/N46H3879 or P/N20H4231

Russian

P/N46H3891 or P/N20H4238

Spanish

P/N46H3878 or P/N20H4226

Swedish / Finnish

P/N46H3882 or P/N20H4229

Swiss

P/N46H3880 or P/N20H4228

Turkish

P/N46H3887 or P/N20H4234

U.K. English

P/N46H3872 or P/N20H4220

U.S. English

P/N46H3871 or P/N20H4219

DETAIL:
1. Replace all old level keyboards and LCD Bezels identified in the PHYSICAL CHECK area with a new level keyboard and LCD Bezel FRU listed in the following chart.

2. Check all model 560 systems with old level keyboards for LCD marks or scratches in the area where the keyboard mouse buttons and trackpoint approach the LCD when the cover is closed.

3. Clean the LCD with a mixture of 50% isopropyl alcohol and 50% distilled water. If marks/scratches are not removed from the above areas replace the LCD.

Safety Note:
DO NOT SPRAY OR POUR CLEANING SOLUTION DIRECTLY ON THE LCD. DAMPEN A CLOTH WITH THE CLEANING SOLUTION FIRST AND THEN CLEAN THE LCD WITH THE CLOTH.

LCD PANEL

FRU P/N

TFT LCD PANEL

P/N12J1600

DSTN LCD PANEL

P/N20H4267

LCD BEZEL

NEW FRU P/N

TFT Bezel raised

P/N20H4266

DSTN Bezel raised

P/N20H4265

KEYBOARD

NEW FRU P/N

Arabic

P/N97H3886

Belgian

P/N97H3884

Canadian French

P/N97H3891

Danish

P/N97H3879

Dutch

P/N97H3878

French

P/N97H3876

German

P/N97H3875

Greek

P/N97H3889

Hebrew

P/N97H3887

Italian

P/N97H3877

Japanese

P/N97H3893

Korean

P/N97H3894

Latin Spanish

P/N97H3890

Norwegian

P/N97H3881

Portuguese

P/N97H3885

Russian

P/N97H3892

Spanish

P/N97H3880

Swedish or Finnish

P/N97H3883

Swiss

P/N97H3882

Turkish

P/N97H3888

U.K. English

P/N97H3874

U.S. English

P/N97H3873

NOTES:
This ECA's expiration date is 10/31/1999.

Order all FRU parts locally, and record Time and Material to service code 33, ECA 004, and OTHER OFFICE 990.

This ECA is NON Billable as long as it is active.

Search Keywords

Hint Category

ECA, Display/Monitor

Date Created

29-10-97

Last Updated

21-12-98

Revision Date

21-12-99

Brand

IBM ThinkPad

Product Family

ThinkPad 560

Machine Type

2640

Model

Various

TypeModel

Retain Tip (if applicable)

H161580,ECA004

Reverse Doclinks
and Admin Purposes

38CC9S
