Service Hints & Tips |
Document ID: RJJR-3PCL4U |
TP 770 - 1090 LCD unit removal
Applicable to: World-Wide
The following information is intended for IBM Dealers and Authorized Servicers only. Customers attempting to follow any of the procedures below may void their warranty.
1090 LCD Unit
Battery Pack (1010)
UltraBay II Device or Second Battery Pack (1020)
Keyboard Assembly (1060)
Center Cover and Hinge Cap (1070)

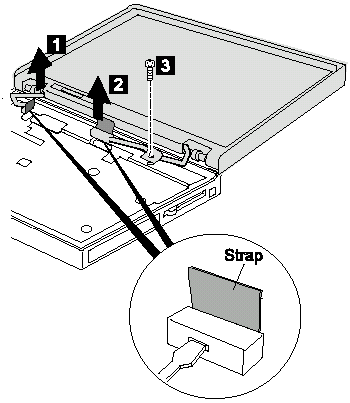

Pull the straps to disconnect the connectors. If the connectors do not disconnect, use a screwdriver.

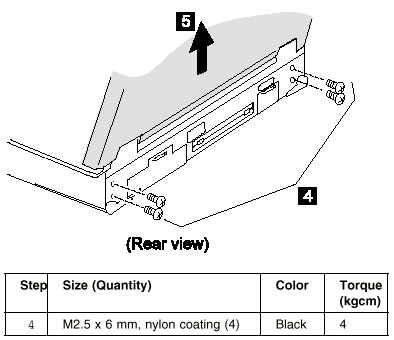

When replacing: When replacing the LCD unit, do not place the hinge between the lower shield and the base cover.
|
