Aptiva - 2168 (Service Level H/I) Riser card
Applicable to: World-Wide
2045 - Riser Card
- Adapter cards (2035) if applicable -
- Riser card power connector.
- Remove the riser card mounting screw (1 ).
- Remove the riser card (2 ).
Some riser cards may contain a VESA local bus extension. See " System Board Layout - Type I-2" for socket locations on the system board.

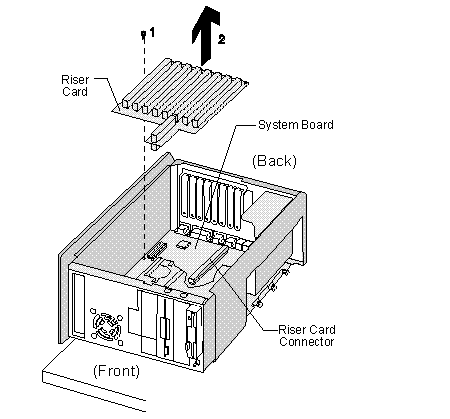

Figure 1-32. Riser Card
|
