TP 560/E - FRU parts listing

65.043 bytes

Parts Information

Document ID: GSMH-3ETGGH

TP 560/E - FRU parts listing

Applicable to: World-Wide

Parts Listing 560, 560E (2640):

TFT LCD Note

For Model 560

Use only the TFT 1 LCD.

For Model 560E

When replacing the entire LCD assembly, use only the TFT 2.
When replacing an individual LCD FRU, match the new FRU to the installed FRU.

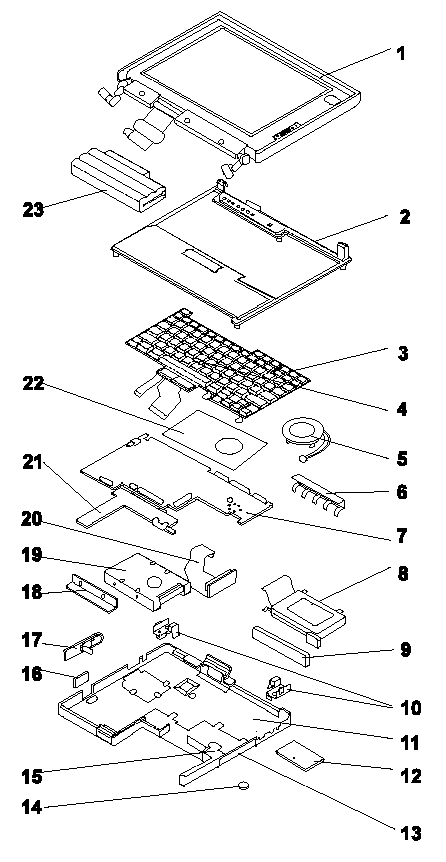

Index

System Unit

1

LCD Assembly (11.3 DSTN)
(U.S.-2640, model 1xx, 3xx, 5xx)
Click here and see LCD FRU (DSTN) LCD FRU.

20H4267

LCD Assembly (12.1 TFT 1)
(U.S.-2640, model 2xx, Exx, Fxx)
(These models may instead use TFT 2 below)
Click here and see TFT 1 (12J1600) LCD FRU.

12J1600

LCD Assembly (560E, 12.1 TFT 2)
(U.S.-2640, model 2xx, 4xx, Exx, Fxx, Hxx)
Click here and see TFT 2 (11J9626) LCD FRU.

11J9626

2

Frame
Note: This FRU includes two model labels.
Verify the model and attach the correct label.

46H4141

3

Keyboard

4

TrackPoint III

5

Speaker

46H4133

6

EMI Bracket I/O

46H4149

7

System Board (100 MHz)
(U.S.-2640, model 5xx)

05K4302

System Board (120 MHz)
(U.S.-2640, model Exx)

05K4303

System Board (133 MHz)
(U.S.-2640, model Fxx)

05K4304

System Board (133 MHz)
(U.S.-2640, model 1xx, 2xx)

05K4305

System Board (560E, 150 MHz)
(U.S.-2640, model 3xx)

05K4306

System Board (560E, 166 MHz)
(U.S.-2640, model 4xx, Hxx)

05K4307

8

PCMCIA Slot

46H4134

9

Rubber Cap I/O

46H4151

10

EMI Spring

46H4145

11

Base Cover

46H4084

Base Cover (560E)

11J8917

12

DIMM Cover

46H4131

13

PCMCIA Cover

46H4127

14

Backup Battery

46H4132

15

Bracket Battery Guide

46H4135

16

FDD Connector Cover

46H4128

17

Power Switch

46H4138

18

HDD Bracket

46H4137

19

Hard Disk Drive (810 MB)
(U.S.-2640, model 5xx, Exx)

39H2220

Hard Disk Drive (1.0 GB)
(U.S.-2640, model Fxx)

39H2221

Note:
Order either of the below hard disk drives that
match the FRU number of the drive being replaced.
(U.S.-2640, model 1xx, 2xx, 3xx, 4xx)
Hard Disk Drive (2.1 GB)
Hard Disk Drive (2.1 GB)

83H7080
12J4569

20

HDD Flexible Cable

11J8920

21

DC/DC Card, 560
(U.S.-2640, model 1xx, 2xx, 5xx, Exx, Fxx)

05K4300

21

DC/DC Card, 560E
(U.S.-2640, model 3xx, 4xx, Hxx)

05K4301

22

Keyboard Sheet

46H4150

23

Battery Pack

46H4144

External FDD (2-mode)
(U.S.-2640, model 1xx, 2xx, 3xx, 4xx, 5xx, Exx, Fxx, Hxx)

10H4056

External FDD (3-mode)

39F2086

External FDD Cable

12J1711

AC Adapter (35W) 2-pin

12J1442

AC Adapter (35W) 3-pin

12J1444

AC Adapter

85G6698

Screw Cap

66G5046

Screw Cap, rear

11J8919

Search Keywords

Document Category

Service Parts

Date Created

03-03-97

Last Updated

04-03-99

Revision Date

03-03-2000

Brand

IBM ThinkPad

Product Family

ThinkPad 560, ThinkPad 560E

Machine Type

2640

Model

Various

TypeModel

Retain Tip (if applicable)

Reverse Doclinks
and Admin Purposes

TFT LCD Note
For Model 560	Use only the TFT 1 LCD.
For Model 560E	When replacing the entire LCD assembly, use only the TFT 2. When replacing an individual LCD FRU, match the new FRU to the installed FRU.

Index	System Unit
1	LCD Assembly (11.3 DSTN) (U.S.-2640, model 1xx, 3xx, 5xx) Click here and see LCD FRU (DSTN) LCD FRU.	20H4267
	LCD Assembly (12.1 TFT 1) (U.S.-2640, model 2xx, Exx, Fxx) (These models may instead use TFT 2 below) Click here and see TFT 1 (12J1600) LCD FRU.	12J1600
	LCD Assembly (560E, 12.1 TFT 2) (U.S.-2640, model 2xx, 4xx, Exx, Fxx, Hxx) Click here and see TFT 2 (11J9626) LCD FRU.	11J9626
2	Frame Note: This FRU includes two model labels. Verify the model and attach the correct label.	46H4141
3	Keyboard
4	TrackPoint III
5	Speaker	46H4133
6	EMI Bracket I/O	46H4149
7	System Board (100 MHz) (U.S.-2640, model 5xx)	05K4302
	System Board (120 MHz) (U.S.-2640, model Exx)	05K4303
	System Board (133 MHz) (U.S.-2640, model Fxx)	05K4304
	System Board (133 MHz) (U.S.-2640, model 1xx, 2xx)	05K4305
	System Board (560E, 150 MHz) (U.S.-2640, model 3xx)	05K4306
	System Board (560E, 166 MHz) (U.S.-2640, model 4xx, Hxx)	05K4307
8	PCMCIA Slot	46H4134
9	Rubber Cap I/O	46H4151
10	EMI Spring	46H4145
11	Base Cover	46H4084
	Base Cover (560E)	11J8917
12	DIMM Cover	46H4131
13	PCMCIA Cover	46H4127
14	Backup Battery	46H4132
15	Bracket Battery Guide	46H4135
16	FDD Connector Cover	46H4128
17	Power Switch	46H4138
18	HDD Bracket	46H4137
19	Hard Disk Drive (810 MB) (U.S.-2640, model 5xx, Exx)	39H2220
	Hard Disk Drive (1.0 GB) (U.S.-2640, model Fxx)	39H2221
	Note: Order either of the below hard disk drives that match the FRU number of the drive being replaced. (U.S.-2640, model 1xx, 2xx, 3xx, 4xx) Hard Disk Drive (2.1 GB) Hard Disk Drive (2.1 GB)	83H7080 12J4569
20	HDD Flexible Cable	11J8920
21	DC/DC Card, 560 (U.S.-2640, model 1xx, 2xx, 5xx, Exx, Fxx)	05K4300
21	DC/DC Card, 560E (U.S.-2640, model 3xx, 4xx, Hxx)	05K4301
22	Keyboard Sheet	46H4150
23	Battery Pack	46H4144
	External FDD (2-mode) (U.S.-2640, model 1xx, 2xx, 3xx, 4xx, 5xx, Exx, Fxx, Hxx)	10H4056
	External FDD (3-mode)	39F2086
	External FDD Cable	12J1711
	AC Adapter (35W) 2-pin	12J1442
	AC Adapter (35W) 3-pin	12J1444
	AC Adapter	85G6698
	Screw Cap	66G5046
	Screw Cap, rear	11J8919
