Service Hints & Tips

Document ID: RJJR-3PGLU5

TP 765 - 1060 Top Cover

Applicable to: World-Wide

1060 Top Cover
Diskette Drive or CD-ROM Drive (1020)
Battery Pack (1030)
Hard Disk Drive (1040)

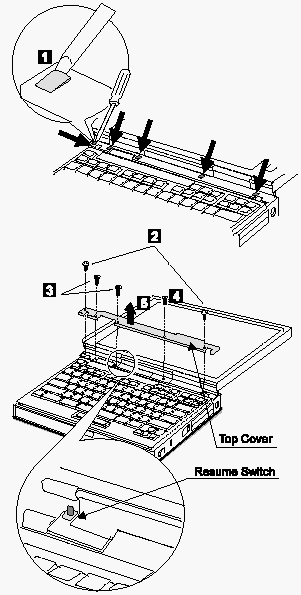

When replacing: be careful not to damage the resume switch shown in the figure.

Step

Size (quantity)

Memo (torque)

2

M2 x 6 mm (2)

Nylon coating (3 kgcm)

3

M2.5 x 8 mm (2)

Flathead (3 kgcm)

4

M2.5 x 6 mm (1)

Nylon coating (3 kgcm)

Note: Do not reuse a screw you removed. Use a new screw and tighten the screw to the torque specification shown.

Search Keywords

Hint Category

Hardware Maintenance Information

Date Created

05-12-97

Last Updated

19-08-98

Revision Date

18-08-99

Brand

IBM ThinkPad

Product Family

ThinkPad 765L, ThinkPad 765D

Machine Type

9546, 9547

Model

various

TypeModel

Retain Tip (if applicable)

Reverse Doclinks
and Admin Purposes

Step	Size (quantity)	Memo (torque)
2	M2 x 6 mm (2)	Nylon coating (3 kgcm)
3	M2.5 x 8 mm (2)	Flathead (3 kgcm)
4	M2.5 x 6 mm (1)	Nylon coating (3 kgcm)
