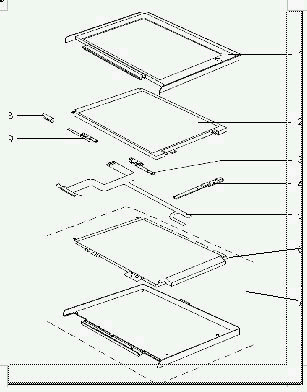

TP 310 - LCD Unit Parts Listing
Applicable to: World-Wide
|
No. |
Description |
FRU No. |
Q'ty |
|
1 |
11.3" DSTN/TFT LCD bezel (with logo) |
11J8576 |
1 |
|
2 |
11.3" DSTN LCD |
11J8593 |
1 |
|
2 |
11.3" TFT LCD |
11J8594 |
1 |
|
3 |
LCD hinge (R) |
11J8652 |
1 |
|
4 |
LCD inverter (DSTN/TFT) |
11J8589 |
1 |
|
5 |
11.3" DSTN LCD FPC cable (with LCD cable diaper) |
11J8577 |
1 |
|
5 |
11.3" TFT LCD FPC cable (with LCD cable diaper) |
11J8578 |
1 |
|
6 |
See Miscellaneous/ Mylar pack |
|
|
|
7 |
11.3" DSTN LCD cover (with logo and LCD diaper) |
11J8573 |
1 |
|
7 |
11.3" TFT LCD cover (with logo and LCD diaper) |
11J8574 |
1 |
|
8 |
See Miscellaneous/Miscellaneous pack 2 |
|
|
|
9 |
LCD hinge (L) |
12J0527 |
1 |
|
