Service Hints & Tips |
Document ID: LWIK-42EHKN |
TP 1400 - Replacing the battery pack
Applicable to: World-Wide
To replace the battery pack, do as follows:
1. Power off your computer.
2. Disconnect the AC Adapter and cables.
3. Close the LCD and turn the computer over.

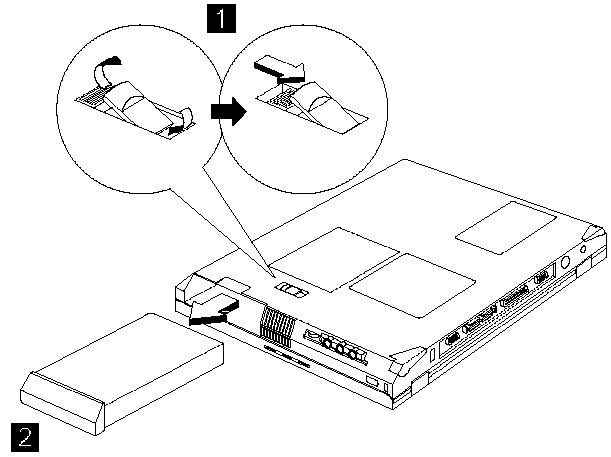

4. Slide and hold the battery pack latch to the unlocked position (1); then remove the battery pack (2).
5. To install the new battery pack, insert it into the battery bay. The battery-pack latch automatically snaps into place. You have finished replacing the battery pack.
Note: You can replace the battery pack when the computer is in hibernation mode or when it is powered off. If you are using a PC Card, the computer might not be able to enter hibernation mode. If this happens power off the computer.
|
