Service Hints & Tips

Document ID: MCGN-3T7PBD

Server Options - NetBAY3 Enclosure Locations (9306-001)

Applicable to: World-Wide

Locations

This section contains the following:
- Casters
- Foot Pads
- Front Cover
- Rear Panel
- Device side rails
- Stacking NetBAY3 enclosures

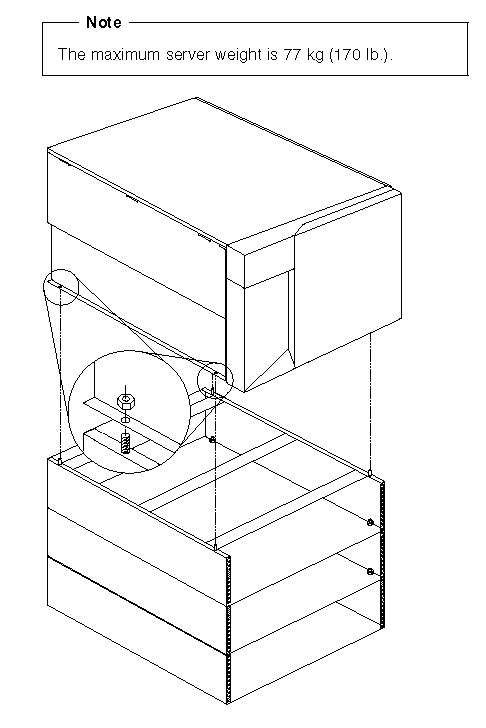

Important The maximum server weight is 77 kg (170 lb.). Refer to the latest IBM Netfinity and IBM PC Server Hardware Maintenance Manual when servicing the server. Assure all power and signal cables are routed properly and are not pinched. Make sure NetBAY3 enclosures in a stack are securely fastened together. Make sure empty NetBAY3 enclosures (no devices installed) have the rear cover securely attached. Servers are lifted onto and off of the NetBAY3 enclosure. Make sure you have help when lifting.

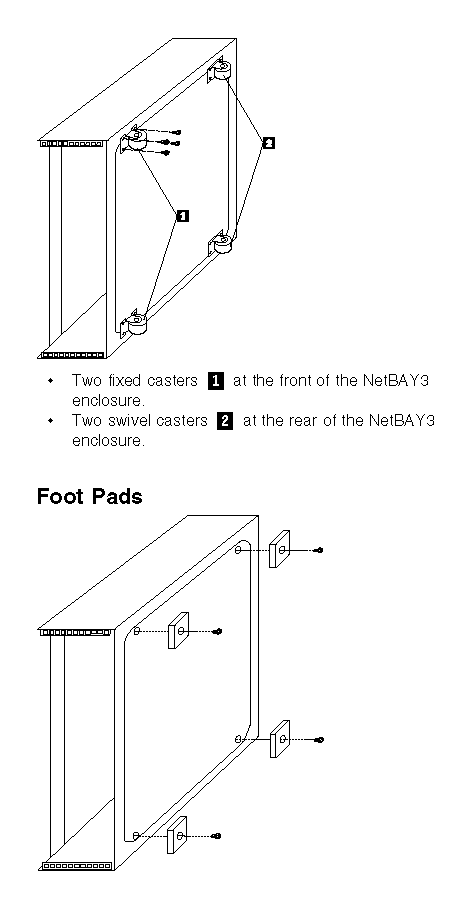

Casters

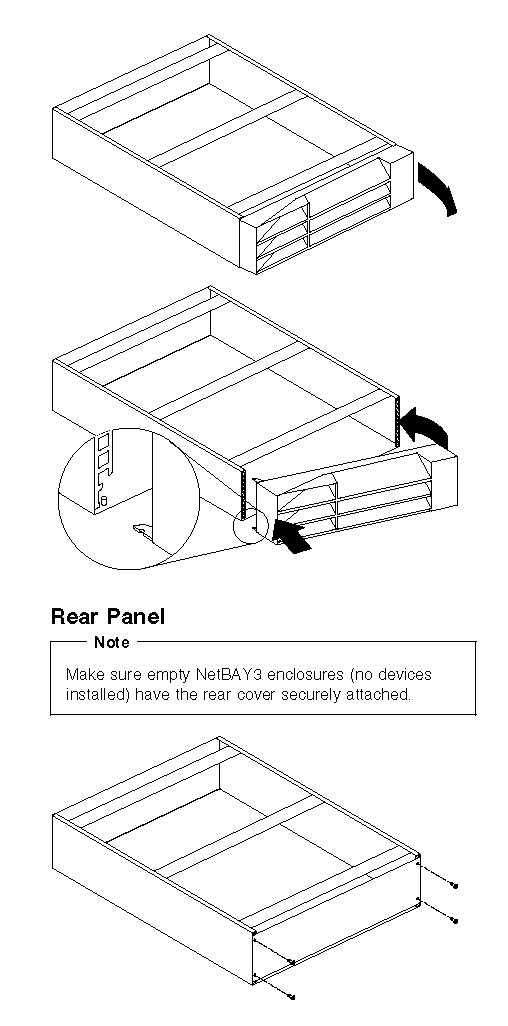

Front Cover

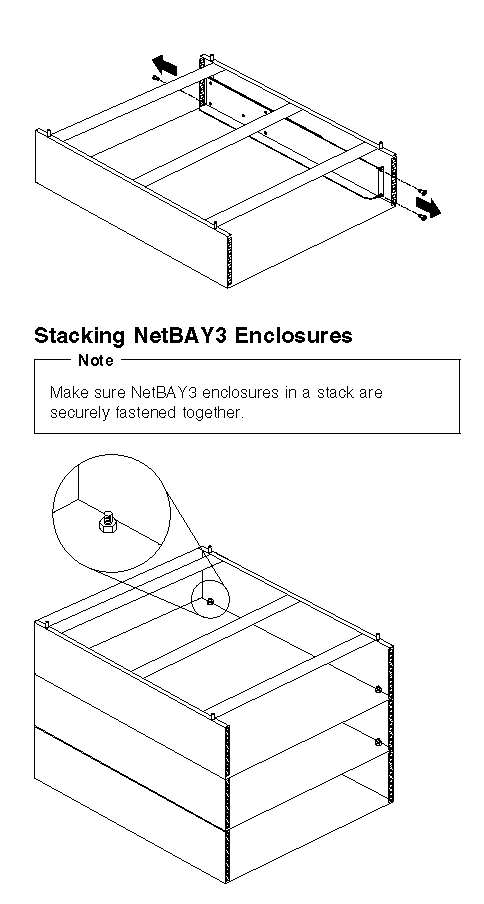

Device Side Rails
