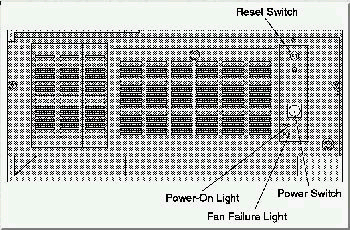

3519 Rack Storage Expansion Enclosure - Controls and Indicators
Applicable to: World-Wide
Reset Switch - Use to cancel the fan failure warning buzzer.
Power Switch - Use to power the storage enclosure on and off. To power-on the storage enclosure, press the Power switch
momentarily, and the Power On indicator will illuminate in approximately one second.
Power-On Light - This green LED lights when the storage enclosure is powered on by pressing the Power switch.
Fan Failure Light - This amber LED lights if one or more of the internal fans fail.
Note:
If one or more fans remain idle, a warning buzzer sounds. Press the Reset switch to silence the warning buzzer.
Attention:
The storage enclosure produces heat. Fans in the storage enclosure pull in fresh air and force out hot air. Operating the storage enclosure with an idle fan can cause overheating, which might result in a malfunction or damage.
|
