Netfinity 5500 - System Parts Listing

94.376 bytes

Parts Information

Document ID: DDSE-469LZ4

Netfinity 5500 - System Parts Listing

Applicable to: World-Wide

System

Index

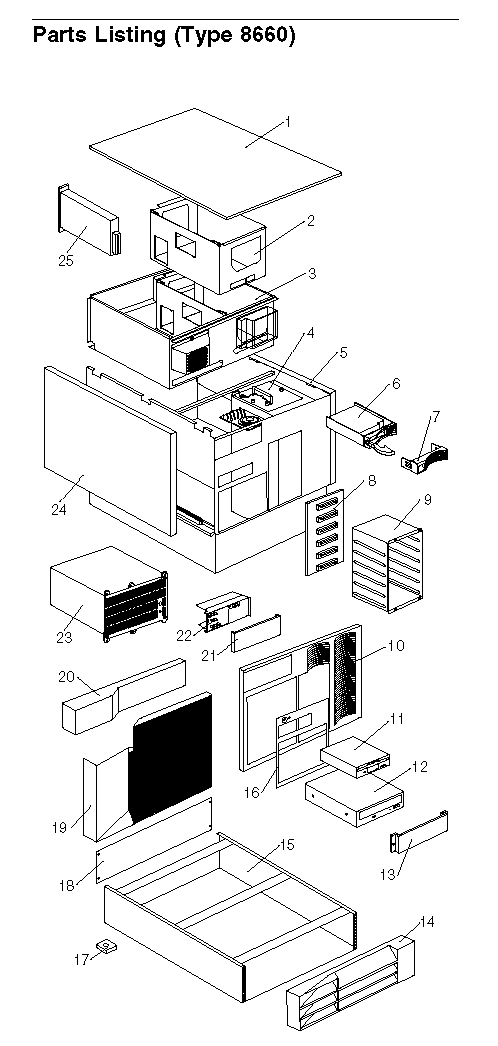

System (Netfinity 5500 - Type 8660)
Models 11U, 11X, 1RU, 1RX, 41U, 41X, 42U, 42X, 4RU, 4RX, 4SU, 4SX, 51U, 51X, 52U, 52X, 5RU, 5RX, 5SU, 5SX, 61U, 61X, 62U, 62X, 6RU, 6RX, 6SU, 6SX

FRU No.

1

Top Cover
(Models 11U, 11X, 1RU, 1RX, 41U, 41X, 42U, 42X, 4RU, 4RX, 4SU, 4SX, 51U, 51X, 52U, 52X, 5RU, 5RX, 5SU, 5SX, 61U, 61X, 62U, 62X, 6RU, 6RX, 6SU, 6SX)

12J3063

2

Processor Card Support Tray (Housing)
(Models 11U, 11X, 1RU, 1RX, 41U, 41X, 42U, 42X, 4RU, 4RX, 4SU, 4SX, 51U, 51X, 52U, 52X, 5RU, 5RX, 5SU, 5SX, 61U, 61X, 62U, 62X, 6RU, 6RX, 6SU, 6SX)

01K6983

3

Shuttle with Bracket
(Models 11U, 11X, 1RU, 1RX, 41U, 41X, 42U, 42X, 4RU,
4RX, 4SU, 4SX, 51U, 51X, 52U, 52X, 5RU, 5RX, 5SU, 5SX, 61U, 61X, 62U, 62X, 6RU, 6RX, 6SU, 6SX)

01K6998

4

Fan Assembly 92 mm with Connector and Bracket
(Models 11U, 11X, 1RU, 1RX, 41U, 41X, 42U, 42X, 4RU, 4RX, 4SU, 4SX, 51U, 51X, 52U, 52X, 5RU, 5RX, 5SU, 5SX, 61U, 61X, 62U, 62X, 6RU, 6RX, 6SU, 6SX)

01K6999

4

Short Blower Fan Assembly with Bracket
(Models 11U, 11X, 1RU, 1RX, 41U, 41X, 42U, 42X, 4RU, 4RX, 4SU, 4SX, 51U, 51X, 52U, 52X, 5RU, 5RX, 5SU, 5SX, 61U, 61X, 62U, 62X, 6RU, 6RX, 6SU, 6SX)

01K6988

4

Long Blower Fan Assembly with Bracket and Vane (Models 11U, 11X, 1RU, 1RX, 41U, 41X, 42U, 42X, 4RU,
4RX, 4SU, 4SX, 51U, 51X, 52U, 52X, 5RU, 5RX, 5SU, 5SX, 61U, 61X, 62U, 62X, 6RU, 6RX, 6SU, 6SX)

01K6990

Fan/Blower 3x Power Cable
(Models 11U, 11X, 1RU, 1RX, 41U, 41X, 42U, 42X, 4RU, 4RX, 4SU, 4SX, 51U, 51X, 52U, 52X, 5RU, 5RX, 5SU, 5SX, 61U, 61X, 62U, 62X, 6RU, 6RX, 6SU, 6SX)

03K9168

5

Base Frame Assembly
(Models 11U, 11X, 1RU, 1RX, 41U, 41X, 42U, 42X, 4RU, 4RX, 4SU, 4SX, 51U, 51X, 52U, 52X, 5RU, 5RX, 5SU, 5SX, 61U, 61X, 62U, 62X, 6RU, 6RX, 6SU, 6SX)

01K6991

6

Hard Disk Drive
See "Hard Disk Drives and Cables".

N/A

7

Hard Disk Drive Bezel (Black)
(Models 11U, 11X, 1RU, 1RX, 41U, 41X, 42U, 42X, 4RU, 4RX, 4SU, 4SX, 51U, 51X, 52U, 52X, 5RU, 5RX, 5SU, 5SX, 61U, 61X, 62U, 62X, 6RU, 6RX, 6SU, 6SX)

12J3072

8

DASD Backplane Board
(Models 11U, 11X, 1RU, 1RX, 41U, 41X, 42U, 42X, 4RU, 4RX, 4SU, 4SX, 51U, 51X, 52U, 52X, 5RU, 5RX, 5SU, 5SX, 61U, 61X, 62U, 62X, 6RU, 6RX, 6SU, 6SX)

76H6880

9

DASD 6-Drive Cage Assembly
(Models 11U, 11X, 1RU, 1RX, 41U, 41X, 42U, 42X, 4RU, 4RX, 4SU, 4SX, 51U, 51X, 52U, 52X, 5RU, 5RX, 5SU, 5SX, 61U, 61X, 62U, 62X, 6RU, 6RX, 6SU, 6SX)

01K6987

10

Front Bezel without Door Assembly
(Models 11U, 11X, 1RU, 1RX, 41U, 41X, 42U, 42X, 4RU, 4RX, 4SU, 4SX, 51U, 51X, 52U, 52X, 5RU, 5RX, 5SU, 5SX, 61U, 61X, 62U, 62X, 6RU, 6RX, 6SU, 6SX)

01K6997

11

1.44MB Diskette Drive, Black
(Models 11U, 11X, 1RU, 1RX, 41U, 41X, 42U, 42X, 4RU, 4RX, 4SU, 4SX, 51U, 51X, 52U, 52X, 5RU, 5RX, 5SU, 5SX, 61U, 61X, 62U, 62X, 6RU, 6RX, 6SU, 6SX)

76H4091

Diskette Holder Bracket
(Models 11U, 11X, 1RU, 1RX, 41U, 41X, 42U, 42X, 4RU, 4RX, 4SU, 4SX, 51U, 51X, 52U, 52X, 5RU, 5RX, 5SU, 5SX, 61U, 61X, 62U, 62X, 6RU, 6RX, 6SU, 6SX)

12J3065

Diskette Drive Signal Cable
(Models 11U, 11X, 1RU, 1RX, 41U, 41X, 42U, 42X, 4RU, 4RX, 4SU, 4SX, 51U, 51X, 52U, 52X, 5RU, 5RX, 5SU, 5SX, 61U, 61X, 62U, 62X, 6RU, 6RX, 6SU, 6SX)

03K9340

12

MKE CR-504 32x CD-ROM Drive, Black
(Models 11U, 11X, 1RU, 1RX, 41U, 41X, 42U, 42X, 4RU, 4RX, 4SU, 4SX, 51U, 51X, 52U, 52X, 5RU, 5RX, 5SU, 5SX, 61U, 61X, 62U, 62X, 6RU, 6RX, 6SU, 6SX)

02K1119

CD-ROM Signal Cable (IDE)
(Models 11U, 11X, 1RU, 1RX, 41U, 41X, 42U, 42X, 4RU, 4RX, 4SU, 4SX, 51U, 51X, 52U, 52X, 5RU, 5RX, 5SU, 5SX, 61U, 61X, 62U, 62X, 6RU, 6RX, 6SU, 6SX)

03K9338

13

5.25-Inch Blank Bezel
(Models 11U, 11X, 1RU, 1RX, 41U, 41X, 42U, 42X, 4RU, 4RX, 4SU, 4SX, 51U, 51X, 52U, 52X, 5RU, 5RX, 5SU, 5SX, 61U, 61X, 62U, 62X, 6RU, 6RX, 6SU, 6SX)

12J3073

14

3-U Front Bezel Assembly with Lock and Keys
(Models 11U, 11X, 41U, 41X, 42U, 42X, 4SU, 4SX, 51U, 51X, 52U, 52X, 5SU, 5SX, 61U, 61X, 62U, 62X)

03K8798

15

3-U Enclosure Frame
(Models 11U, 11X, 41U, 41X, 42U, 42X, 4SU, 4SX, 51U, 51X, 52U, 52X, 5SU, 5SX, 61U, 61X, 62U, 62X)

03K8797

16

Media and Switch Trim Panel
(Models 11U, 11X, 41U, 41X, 42U, 42X, 4RU, 4RX, 4SU, 4SX, 51U, 51X, 52U, 52X, 5RU, 5RX, 5SU, 5SX, 61U, 61X, 62U, 62X, 6RU, 6RX, 6SU, 6SX)

03K8773

17

Foot Pads Qty. 4
(Models 11U, 11X, 41U, 41X, 42U, 42X, 4SU, 4SX, 51U,
51X, 52U, 52X, 5SU, 5SX, 61U, 61X, 62U, 62X)

03K8800

18

3-U Blank Panel
(Models 11U, 11X, 41U, 41X, 42U, 42X, 4SU, 4SX, 51U,
51X, 52U, 52X, 5SU, 5SX, 61U, 61X, 62U, 62X)

03K8799

19

DASD Door
(Models 11U, 11X, 41U, 41X, 42U, 42X, 4SU, 4SX, 51U, 51X, 52U, 52X, 5SU, 5SX, 61U, 61X, 62U, 62X)

03K8778

20

Front Bezel Cap
(Models 11U, 11X, 41U, 41X, 42U, 42X, 4SU, 4SX, 51U,
51X, 52U, 52X, 5SU, 5SX, 61U, 61X, 62U, 62X)

12J7041

Door Hinge
(Models 11U, 11X, 41U, 41X, 42U, 42X, 4SU, 4SX, 51U, 51X, 52U, 52X, 5SU, 5SX, 61U, 61X, 62U, 62X)

01K6637

21

Status Cover Lens
(Models 11U, 11X, 1RU, 1RX, 41U, 41X, 42U, 42X, 4RU,
4RX, 4SU, 4SX, 51U, 51X, 52U, 52X, 5RU, 5RX, 5SU, 5SX, 61U, 61X, 62U, 62X, 6RU, 6RX, 6SU, 6SX)

12J7031

22

Front LED
(Models 11U, 11X, 1RU, 1RX, 41U, 41X, 42U, 42X, 4RU, 4RX, 4SU, 4SX, 51U, 51X, 52U, 52X, 5RU, 5RX, 5SU, 5SX, 61U, 61X, 62U, 62X, 6RU, 6RX, 6SU, 6SX)

01K7001

23

400 Watt Hot Swap PFC Power Supply Assembly with Bracket
(Models 11U, 11X, 1RU, 1RX, 41U, 41X, 42U, 42X, 4RU, 4RX, 4SU, 4SX, 51U, 51X, 52U, 52X, 5RU, 5RX, 5SU, 5SX, 61U, 61X, 62U, 62X, 6RU, 6RX, 6SU, 6SX)

03K8774

Power Supply Filler Plate
(Models 11U, 11X, 1RU, 1RX, 41U, 41X, 42U, 42X, 4RU, 4RX, 4SU, 4SX, 51U, 51X, 52U, 52X, 5RU, 5RX, 5SU, 5SX, 61U, 61X, 62U, 62X, 6RU, 6RX, 6SU, 6SX)

01K6996

Hot Swap Power Backplane Card with 5 Power Cables (Models 11U, 11X, 1RU, 1RX, 41U, 41X, 42U, 42X, 4RU,
4RX, 4SU, 4SX, 51U, 51X, 52U, 52X, 5RU, 5RX, 5SU, 5SX, 61U, 61X, 62U, 62X, 6RU, 6RX, 6SU, 6SX)

01K6992

24

Side Access Cover
(Models 11U, 11X, 41U, 41X, 42U, 42X, 4SU, 4SX, 51U,
51X, 52U, 52X, 5SU, 5SX, 61U, 61X, 62U, 62X)

03K8776

Side Cover Retention Bracket
(Models 11U, 11X, 41U, 41X, 42U, 42X, 4SU, 4SX, 51U, 51X, 52U, 52X, 5SU, 5SX, 61U, 61X, 62U, 62X)

12J7040

25

Power AC Inlet Box
(Models 11U, 11X, 1RU, 1RX, 41U, 41X, 42U, 42X, 4RU,
4RX, 4SU, 4SX, 51U, 51X, 52U, 52X, 5RU, 5RX, 5SU, 5SX, 61U, 61X, 62U, 62X, 6RU, 6RX, 6SU, 6SX)

01K6995

64MB ECC 3.3v REG DIMM (Option)

01K7392

128 MB ECC 3.3v REG DIMM
(Models 11U, 11X, 41U, 41X, 51U, 51X, 5RU, 5RX)

01K7393

128 MB ECC 3.3v REG SDRAM DIMM
(Models 61U, 61X, 62U, 62X, 6RU, 6RX, 6SU, 6SX)

28L1015

256MB ECC 3.3v REG DIMM
(Models 52U, 52X, 5SU, 5SX; options for other models)

01K7391

512 KB Processor Card without Processor
(Models 11U, 11X, 1RU, 1RX, 41U, 41X, 42U, 42X, 4RU, 4RX, 4SU, 4SX, 51U, 51X, 52U, 52X, 5RU, 5RX, 5SU, 5SX, 61U, 61X, 62U, 62X, 6RU, 6RX, 6SU, 6SX)

01K7077

350 MHz Processor with 512 KB Cache and Heat Sink (Models 11U, 11X, 1RU, 1RX)

10L5881

400 MHz Processor with 512 KB Cache and Heat Sink (Models 41U, 41X, 42U, 42X, 4RU, 4RX, 4SU, 4SX)

10L5882

450 MHz Processor with 512 KB Cache and Heat Sink (Models 51U, 51X, 52U, 52X, 5RU, 5RX, 5SU, 5SX)

37L5842
(replaces 01K1578)

500 MHz Processor with 512 KB Cache and Heat Sink (Models 61U, 61X, 62U, 62X, 6RU, 6RX, 6SU, 6SX)

33L1615

Air Diffuser
(Models 11U, 11X, 1RU, 1RX, 41U, 41X, 42U, 42X, 4RU, 4RX, 4SU, 4SX, 51U, 51X, 52U, 52X, 5RU, 5RX, 5SU, 5SX, 61U, 61X, 62U, 62X, 6RU, 6RX, 6SU, 6SX)

01K7000

Cable Management Arm
(Models 1RU, 1RX, 4RU, 4RX, 4SU, 4SX, 5RU, 5RX, 5SU, 5SX, 6RU, 6RX, 6SU, 6SX)

12J3088

Cable Management Arm Bracket
(Models 1RU, 1RX, 4RU, 4RX, 4SU, 4SX, 5RU, 5RX, 5SU, 5SX, 6RU, 6RX, 6SU, 6SX)

12J3089

EIA Mounting Flange (Left and Right)
(Models 1RU, 1RX, 4RU, 4RX, 4SU, 4SX, 5RU, 5RX, 5SU, 5SX, 6RU, 6RX, 6SU, 6SX)

01K6981

Interior LED and Speaker
(Models 11U, 11X, 1RU, 1RX, 41U, 41X, 42U, 42X, 4RU, 4RX, 4SU, 4SX, 51U, 51X, 52U, 52X, 5RU, 5RX, 5SU, 5SX, 61U, 61X, 62U, 62X, 6RU, 6RX, 6SU, 6SX)

01K7002

Keyboard with Cable
(Models 11U, 11X, 1RU, 1RX, 41U, 41X, 42U, 42X, 4RU, 4RX, 4SU, 4SX, 51U, 51X, 52U, 52X, 5RU, 5RX, 5SU, 5SX, 61U, 61X, 62U, 62X)

See "Keyboards".
N/A

Keylock with Keys and Pawl
(Models 11U, 11X, 41U, 41X, 42U, 42X, 4SU, 4SX, 51U, 51X, 52U, 52X, 5SU, 5SX, 61U, 61X, 62U, 62X)

01K6641

Lift Handle
(Models 1RU, 1RX, 4RU, 4RX, 4SU, 4SX, 5RU, 5RX, 5SU, 5SX, 6RU, 6RX, 6SU, 6SX)

03K9069

Lock Linkage
(Models 11U, 11X, 41U, 41X, 42U, 42X, 4SU, 4SX, 51U, 51X, 52U, 52X, 5SU, 5SX, 61U, 61X, 62U, 62X)

03K8777

Media Bracket
(Models 11U, 11X, 1RU, 1RX, 41U, 41X, 42U, 42X, 4RU, 4RX, 4SU, 4SX, 51U, 51X, 52U, 52X, 5RU, 5RX, 5SU, 5SX, 61U, 61X, 62U, 62X, 6RU, 6RX, 6SU, 6SX)

12J5681

Miscellaneous Parts Kit 1
(Models 11U, 11X, 41U, 41X, 42U, 42X, 4SU, 4SX, 51U, 51X, 52U, 52X, 5SU, 5SX, 61U, 61X, 62U, 62X, 6RU, 6RX, 6SU, 6SX)

32X5/16 Screws (4 each)
M3.5X8 Plastite Screws (2 each)
(8 each)-M3X5 (CD/BRKT SCREWS),15- M3.5X7 (PROC CD SCREWS),
6-32X3/16 Screws (8 each)
3.9ID Nylon Washers (2 each)
EMC Springs (24 each)
Lock Hole Plug (1 each)
(1 each)CABLE TIE,
(4 each)FAN GROMMETS,

12J3079

Miscellaneous Parts Kit 2
(Models 11U, 11X, 41U, 41X, 42U, 42X, 4SU, 4SX, 51U, 51X, 52U, 52X, 5SU, 5SX, 61U, 61X, 62U, 62X, 6RU, 6RX, 6SU, 6SX)

EMI I/O Gasket
EMI PCI/ISA I/O Gasket (1 each)

03K8782

Miscellaneous Parts Kit 3
(Models 11U, 11X, 41U, 41X, 42U, 42X, 4SU, 4SX, 51U, 51X, 52U, 52X, 5SU, 5SX, 61U, 61X, 62U, 62X, 6RU, 6RX, 6SU, 6SX)

M3X5 Handle Screws (5 each)
PCI Card/Housing to Shuttle Screws (2 each)
Insulator with Light Pipes (5 each)
Hot Swap PCI Card Clamps (4 each)
Hot Swap PCI Card Guides (5 each)
Hot Swap PCI I/O Card Guides (6 each)
ISA I/O Card Guide (1 each)
PCI Filler Plate Bracket (4 each)
Hot Swap Retention Handles (4 each)
Switch Card Mounting to Chassis (1 each)

28L4526

Miscellaneous Rack Parts Kit 4
(Models 1RU, 1RX, 4RU, 4RX, 5RU, 5RX, 6RU, 6RX, 6SU, 6SX)

M6X16 Slide/Bracket to Rack Screws (16 each)
M3.5X7 EIA Flanges to Chassis Screws (6 each)
M4X8 Slides to Chassis Screws (8 each)
M6 Slide/Bracket to Rack Nut Clips (6 each)
M6 Flange Arm to Bracket Nuts (2 each)

12J3090

Mouse
(Models 11U, 11X, 41U, 41X, 42U, 42X, 4SU, 4SX, 51U, 51X, 52U, 52X, 5SU, 5SX, 61U, 61X, 62U, 62X)

76H0889

Power Supply Bracket
(Models 11U, 11X, 1RU, 1RX, 41U, 41X, 42U, 42X, 4RU, 4RX, 4SU, 4SX, 51U, 51X, 52U, 52X, 5RU, 5RX, 5SU, 5SX, 61U, 61X, 62U, 62X, 6RU, 6RX, 6SU, 6SX)

36L9535

Power Switch (Button) Assembly with Bracket
(Models 11U, 11X, 1RU, 1RX, 41U, 41X, 42U, 42X, 4RU, 4RX, 4SU, 4SX, 51U, 51X, 52U, 52X, 5RU, 5RX, 5SU, 5SX, 61U, 61X, 62U, 62X, 6RU, 6RX, 6SU, 6SX)

01K7003

Processor Terminator Card
(Models 11U, 11X, 1RU, 1RX, 41U, 41X, 42U, 42X, 4RU, 4RX, 4SU, 4SX, 51U, 51X, 52U, 52X, 5RU, 5RX, 5SU, 5SX)

12J2701

Processor Terminator Card
(Models 61U, 61X, 62U, 62X, 6RU, 6RX, 6SU, 6SX)

36L9420

Rack Slide Bracket Assembly
(Models 1RU, 1RX, 4RU, 4RX, 4SU, 4SX, 5RU, 5RX, 5SU, 5SX, 6RU, 6RX, 6SU, 6SX)

03K8775

Slot 1 Adapter
(Models 11U, 11X, 1RU, 1RX, 41U, 41X, 42U, 42X, 4RU, 4RX, 4SU, 4SX, 51U, 51X, 52U, 52X, 5RU, 5RX, 5SU, 5SX)

36L9543

Slot 1 Adapter
(Models 61U, 61X, 62U, 62X, 6RU, 6RX, 6SU, 6SX)

33L4320

System Battery
(Models 11U, 11X, 1RU, 1RX, 41U, 41X, 42U, 42X, 4RU,
4RX, 4SU, 4SX, 51U, 51X, 52U, 52X, 5RU, 5RX, 5SU, 5SX, 61U, 61X, 62U, 62X, 6RU, 6RX, 6SU, 6SX)

33F8354

System Board without Memory and Processor Card (Models 11U, 11X, 1RU, 1RX, 41U, 41X, 42U, 42X, 4RU,
4RX, 4SU, 4SX, 51U, 51X, 52U, 52X, 5RU, 5RX, 5SU, 5SX)

01K7213

System Board without Memory and Processor Card (Models 61U, 61X, 62U, 62X, 6RU, 6RX, 6SU, 6SX)

36L9446

System Board Shield
(Models 11U, 11X, 1RU, 1RX, 41U, 41X, 42U, 42X, 4RU, 4RX, 4SU, 4SX, 51U, 51X, 52U, 52X, 5RU, 5RX, 5SU, 5SX, 61U, 61X, 62U, 62X, 6RU, 6RX, 6SU, 6SX)

03K9054

System Service Label
(Models 11U, 11X, 1RU, 1RX, 41U, 41X, 42U, 42X, 4RU, 4RX, 4SU, 4SX, 51U, 51X, 52U, 52X, 5RU, 5RX, 5SU, 5SX, 61U, 61X, 62U, 62X, 6RU, 6RX, 6SU, 6SX)

02K3571

Voltage Regulator Card
(Models 11U, 11X, 1RU, 1RX, 41U, 41X, 42U, 42X, 4RU, 4RX, 4SU, 4SX, 51U, 51X, 52U, 52X, 5RU, 5RX, 5SU, 5SX, 61U, 61X, 62U, 62X, 6RU, 6RX, 6SU, 6SX)

01K7113

Search Keywords

Document Category

Service Parts

Date Created

23-03-99

Last Updated

24-03-99

Revision Date

24-03-2000

Brand

IBM PC Server

Product Family

Netfinity 5500

Machine Type

8660

Model

TypeModel

Retain Tip (if applicable)

Reverse Doclinks
and Admin Purposes

Index	System (Netfinity 5500 - Type 8660) Models 11U, 11X, 1RU, 1RX, 41U, 41X, 42U, 42X, 4RU, 4RX, 4SU, 4SX, 51U, 51X, 52U, 52X, 5RU, 5RX, 5SU, 5SX, 61U, 61X, 62U, 62X, 6RU, 6RX, 6SU, 6SX	FRU No.
1	Top Cover (Models 11U, 11X, 1RU, 1RX, 41U, 41X, 42U, 42X, 4RU, 4RX, 4SU, 4SX, 51U, 51X, 52U, 52X, 5RU, 5RX, 5SU, 5SX, 61U, 61X, 62U, 62X, 6RU, 6RX, 6SU, 6SX)	12J3063
2	Processor Card Support Tray (Housing) (Models 11U, 11X, 1RU, 1RX, 41U, 41X, 42U, 42X, 4RU, 4RX, 4SU, 4SX, 51U, 51X, 52U, 52X, 5RU, 5RX, 5SU, 5SX, 61U, 61X, 62U, 62X, 6RU, 6RX, 6SU, 6SX)	01K6983
3	Shuttle with Bracket (Models 11U, 11X, 1RU, 1RX, 41U, 41X, 42U, 42X, 4RU, 4RX, 4SU, 4SX, 51U, 51X, 52U, 52X, 5RU, 5RX, 5SU, 5SX, 61U, 61X, 62U, 62X, 6RU, 6RX, 6SU, 6SX)	01K6998
4	Fan Assembly 92 mm with Connector and Bracket (Models 11U, 11X, 1RU, 1RX, 41U, 41X, 42U, 42X, 4RU, 4RX, 4SU, 4SX, 51U, 51X, 52U, 52X, 5RU, 5RX, 5SU, 5SX, 61U, 61X, 62U, 62X, 6RU, 6RX, 6SU, 6SX)	01K6999
4	Short Blower Fan Assembly with Bracket (Models 11U, 11X, 1RU, 1RX, 41U, 41X, 42U, 42X, 4RU, 4RX, 4SU, 4SX, 51U, 51X, 52U, 52X, 5RU, 5RX, 5SU, 5SX, 61U, 61X, 62U, 62X, 6RU, 6RX, 6SU, 6SX)	01K6988
4	Long Blower Fan Assembly with Bracket and Vane (Models 11U, 11X, 1RU, 1RX, 41U, 41X, 42U, 42X, 4RU, 4RX, 4SU, 4SX, 51U, 51X, 52U, 52X, 5RU, 5RX, 5SU, 5SX, 61U, 61X, 62U, 62X, 6RU, 6RX, 6SU, 6SX)	01K6990
	Fan/Blower 3x Power Cable (Models 11U, 11X, 1RU, 1RX, 41U, 41X, 42U, 42X, 4RU, 4RX, 4SU, 4SX, 51U, 51X, 52U, 52X, 5RU, 5RX, 5SU, 5SX, 61U, 61X, 62U, 62X, 6RU, 6RX, 6SU, 6SX)	03K9168
5	Base Frame Assembly (Models 11U, 11X, 1RU, 1RX, 41U, 41X, 42U, 42X, 4RU, 4RX, 4SU, 4SX, 51U, 51X, 52U, 52X, 5RU, 5RX, 5SU, 5SX, 61U, 61X, 62U, 62X, 6RU, 6RX, 6SU, 6SX)	01K6991
6	Hard Disk Drive See "Hard Disk Drives and Cables".	N/A
7	Hard Disk Drive Bezel (Black) (Models 11U, 11X, 1RU, 1RX, 41U, 41X, 42U, 42X, 4RU, 4RX, 4SU, 4SX, 51U, 51X, 52U, 52X, 5RU, 5RX, 5SU, 5SX, 61U, 61X, 62U, 62X, 6RU, 6RX, 6SU, 6SX)	12J3072
8	DASD Backplane Board (Models 11U, 11X, 1RU, 1RX, 41U, 41X, 42U, 42X, 4RU, 4RX, 4SU, 4SX, 51U, 51X, 52U, 52X, 5RU, 5RX, 5SU, 5SX, 61U, 61X, 62U, 62X, 6RU, 6RX, 6SU, 6SX)	76H6880
9	DASD 6-Drive Cage Assembly (Models 11U, 11X, 1RU, 1RX, 41U, 41X, 42U, 42X, 4RU, 4RX, 4SU, 4SX, 51U, 51X, 52U, 52X, 5RU, 5RX, 5SU, 5SX, 61U, 61X, 62U, 62X, 6RU, 6RX, 6SU, 6SX)	01K6987
10	Front Bezel without Door Assembly (Models 11U, 11X, 1RU, 1RX, 41U, 41X, 42U, 42X, 4RU, 4RX, 4SU, 4SX, 51U, 51X, 52U, 52X, 5RU, 5RX, 5SU, 5SX, 61U, 61X, 62U, 62X, 6RU, 6RX, 6SU, 6SX)	01K6997
11	1.44MB Diskette Drive, Black (Models 11U, 11X, 1RU, 1RX, 41U, 41X, 42U, 42X, 4RU, 4RX, 4SU, 4SX, 51U, 51X, 52U, 52X, 5RU, 5RX, 5SU, 5SX, 61U, 61X, 62U, 62X, 6RU, 6RX, 6SU, 6SX)	76H4091
	Diskette Holder Bracket (Models 11U, 11X, 1RU, 1RX, 41U, 41X, 42U, 42X, 4RU, 4RX, 4SU, 4SX, 51U, 51X, 52U, 52X, 5RU, 5RX, 5SU, 5SX, 61U, 61X, 62U, 62X, 6RU, 6RX, 6SU, 6SX)	12J3065
	Diskette Drive Signal Cable (Models 11U, 11X, 1RU, 1RX, 41U, 41X, 42U, 42X, 4RU, 4RX, 4SU, 4SX, 51U, 51X, 52U, 52X, 5RU, 5RX, 5SU, 5SX, 61U, 61X, 62U, 62X, 6RU, 6RX, 6SU, 6SX)	03K9340
12	MKE CR-504 32x CD-ROM Drive, Black (Models 11U, 11X, 1RU, 1RX, 41U, 41X, 42U, 42X, 4RU, 4RX, 4SU, 4SX, 51U, 51X, 52U, 52X, 5RU, 5RX, 5SU, 5SX, 61U, 61X, 62U, 62X, 6RU, 6RX, 6SU, 6SX)	02K1119
	CD-ROM Signal Cable (IDE) (Models 11U, 11X, 1RU, 1RX, 41U, 41X, 42U, 42X, 4RU, 4RX, 4SU, 4SX, 51U, 51X, 52U, 52X, 5RU, 5RX, 5SU, 5SX, 61U, 61X, 62U, 62X, 6RU, 6RX, 6SU, 6SX)	03K9338
13	5.25-Inch Blank Bezel (Models 11U, 11X, 1RU, 1RX, 41U, 41X, 42U, 42X, 4RU, 4RX, 4SU, 4SX, 51U, 51X, 52U, 52X, 5RU, 5RX, 5SU, 5SX, 61U, 61X, 62U, 62X, 6RU, 6RX, 6SU, 6SX)	12J3073
14	3-U Front Bezel Assembly with Lock and Keys (Models 11U, 11X, 41U, 41X, 42U, 42X, 4SU, 4SX, 51U, 51X, 52U, 52X, 5SU, 5SX, 61U, 61X, 62U, 62X)	03K8798
15	3-U Enclosure Frame (Models 11U, 11X, 41U, 41X, 42U, 42X, 4SU, 4SX, 51U, 51X, 52U, 52X, 5SU, 5SX, 61U, 61X, 62U, 62X)	03K8797
16	Media and Switch Trim Panel (Models 11U, 11X, 41U, 41X, 42U, 42X, 4RU, 4RX, 4SU, 4SX, 51U, 51X, 52U, 52X, 5RU, 5RX, 5SU, 5SX, 61U, 61X, 62U, 62X, 6RU, 6RX, 6SU, 6SX)	03K8773
17	Foot Pads Qty. 4 (Models 11U, 11X, 41U, 41X, 42U, 42X, 4SU, 4SX, 51U, 51X, 52U, 52X, 5SU, 5SX, 61U, 61X, 62U, 62X)	03K8800
18	3-U Blank Panel (Models 11U, 11X, 41U, 41X, 42U, 42X, 4SU, 4SX, 51U, 51X, 52U, 52X, 5SU, 5SX, 61U, 61X, 62U, 62X)	03K8799
19	DASD Door (Models 11U, 11X, 41U, 41X, 42U, 42X, 4SU, 4SX, 51U, 51X, 52U, 52X, 5SU, 5SX, 61U, 61X, 62U, 62X)	03K8778
20	Front Bezel Cap (Models 11U, 11X, 41U, 41X, 42U, 42X, 4SU, 4SX, 51U, 51X, 52U, 52X, 5SU, 5SX, 61U, 61X, 62U, 62X)	12J7041
	Door Hinge (Models 11U, 11X, 41U, 41X, 42U, 42X, 4SU, 4SX, 51U, 51X, 52U, 52X, 5SU, 5SX, 61U, 61X, 62U, 62X)	01K6637
21	Status Cover Lens (Models 11U, 11X, 1RU, 1RX, 41U, 41X, 42U, 42X, 4RU, 4RX, 4SU, 4SX, 51U, 51X, 52U, 52X, 5RU, 5RX, 5SU, 5SX, 61U, 61X, 62U, 62X, 6RU, 6RX, 6SU, 6SX)	12J7031
22	Front LED (Models 11U, 11X, 1RU, 1RX, 41U, 41X, 42U, 42X, 4RU, 4RX, 4SU, 4SX, 51U, 51X, 52U, 52X, 5RU, 5RX, 5SU, 5SX, 61U, 61X, 62U, 62X, 6RU, 6RX, 6SU, 6SX)	01K7001
23	400 Watt Hot Swap PFC Power Supply Assembly with Bracket (Models 11U, 11X, 1RU, 1RX, 41U, 41X, 42U, 42X, 4RU, 4RX, 4SU, 4SX, 51U, 51X, 52U, 52X, 5RU, 5RX, 5SU, 5SX, 61U, 61X, 62U, 62X, 6RU, 6RX, 6SU, 6SX)	03K8774
	Power Supply Filler Plate (Models 11U, 11X, 1RU, 1RX, 41U, 41X, 42U, 42X, 4RU, 4RX, 4SU, 4SX, 51U, 51X, 52U, 52X, 5RU, 5RX, 5SU, 5SX, 61U, 61X, 62U, 62X, 6RU, 6RX, 6SU, 6SX)	01K6996
	Hot Swap Power Backplane Card with 5 Power Cables (Models 11U, 11X, 1RU, 1RX, 41U, 41X, 42U, 42X, 4RU, 4RX, 4SU, 4SX, 51U, 51X, 52U, 52X, 5RU, 5RX, 5SU, 5SX, 61U, 61X, 62U, 62X, 6RU, 6RX, 6SU, 6SX)	01K6992
24	Side Access Cover (Models 11U, 11X, 41U, 41X, 42U, 42X, 4SU, 4SX, 51U, 51X, 52U, 52X, 5SU, 5SX, 61U, 61X, 62U, 62X)	03K8776
	Side Cover Retention Bracket (Models 11U, 11X, 41U, 41X, 42U, 42X, 4SU, 4SX, 51U, 51X, 52U, 52X, 5SU, 5SX, 61U, 61X, 62U, 62X)	12J7040
25	Power AC Inlet Box (Models 11U, 11X, 1RU, 1RX, 41U, 41X, 42U, 42X, 4RU, 4RX, 4SU, 4SX, 51U, 51X, 52U, 52X, 5RU, 5RX, 5SU, 5SX, 61U, 61X, 62U, 62X, 6RU, 6RX, 6SU, 6SX)	01K6995
	64MB ECC 3.3v REG DIMM (Option)	01K7392
	128 MB ECC 3.3v REG DIMM (Models 11U, 11X, 41U, 41X, 51U, 51X, 5RU, 5RX)	01K7393
	128 MB ECC 3.3v REG SDRAM DIMM (Models 61U, 61X, 62U, 62X, 6RU, 6RX, 6SU, 6SX)	28L1015
	256MB ECC 3.3v REG DIMM (Models 52U, 52X, 5SU, 5SX; options for other models)	01K7391
	512 KB Processor Card without Processor (Models 11U, 11X, 1RU, 1RX, 41U, 41X, 42U, 42X, 4RU, 4RX, 4SU, 4SX, 51U, 51X, 52U, 52X, 5RU, 5RX, 5SU, 5SX, 61U, 61X, 62U, 62X, 6RU, 6RX, 6SU, 6SX)	01K7077
	350 MHz Processor with 512 KB Cache and Heat Sink (Models 11U, 11X, 1RU, 1RX)	10L5881
	400 MHz Processor with 512 KB Cache and Heat Sink (Models 41U, 41X, 42U, 42X, 4RU, 4RX, 4SU, 4SX)	10L5882
	450 MHz Processor with 512 KB Cache and Heat Sink (Models 51U, 51X, 52U, 52X, 5RU, 5RX, 5SU, 5SX)	37L5842 (replaces 01K1578)
	500 MHz Processor with 512 KB Cache and Heat Sink (Models 61U, 61X, 62U, 62X, 6RU, 6RX, 6SU, 6SX)	33L1615
	Air Diffuser (Models 11U, 11X, 1RU, 1RX, 41U, 41X, 42U, 42X, 4RU, 4RX, 4SU, 4SX, 51U, 51X, 52U, 52X, 5RU, 5RX, 5SU, 5SX, 61U, 61X, 62U, 62X, 6RU, 6RX, 6SU, 6SX)	01K7000
	Cable Management Arm (Models 1RU, 1RX, 4RU, 4RX, 4SU, 4SX, 5RU, 5RX, 5SU, 5SX, 6RU, 6RX, 6SU, 6SX)	12J3088
	Cable Management Arm Bracket (Models 1RU, 1RX, 4RU, 4RX, 4SU, 4SX, 5RU, 5RX, 5SU, 5SX, 6RU, 6RX, 6SU, 6SX)	12J3089
	EIA Mounting Flange (Left and Right) (Models 1RU, 1RX, 4RU, 4RX, 4SU, 4SX, 5RU, 5RX, 5SU, 5SX, 6RU, 6RX, 6SU, 6SX)	01K6981
	Interior LED and Speaker (Models 11U, 11X, 1RU, 1RX, 41U, 41X, 42U, 42X, 4RU, 4RX, 4SU, 4SX, 51U, 51X, 52U, 52X, 5RU, 5RX, 5SU, 5SX, 61U, 61X, 62U, 62X, 6RU, 6RX, 6SU, 6SX)	01K7002
	Keyboard with Cable (Models 11U, 11X, 1RU, 1RX, 41U, 41X, 42U, 42X, 4RU, 4RX, 4SU, 4SX, 51U, 51X, 52U, 52X, 5RU, 5RX, 5SU, 5SX, 61U, 61X, 62U, 62X)	See "Keyboards". N/A
	Keylock with Keys and Pawl (Models 11U, 11X, 41U, 41X, 42U, 42X, 4SU, 4SX, 51U, 51X, 52U, 52X, 5SU, 5SX, 61U, 61X, 62U, 62X)	01K6641
	Lift Handle (Models 1RU, 1RX, 4RU, 4RX, 4SU, 4SX, 5RU, 5RX, 5SU, 5SX, 6RU, 6RX, 6SU, 6SX)	03K9069
	Lock Linkage (Models 11U, 11X, 41U, 41X, 42U, 42X, 4SU, 4SX, 51U, 51X, 52U, 52X, 5SU, 5SX, 61U, 61X, 62U, 62X)	03K8777
	Media Bracket (Models 11U, 11X, 1RU, 1RX, 41U, 41X, 42U, 42X, 4RU, 4RX, 4SU, 4SX, 51U, 51X, 52U, 52X, 5RU, 5RX, 5SU, 5SX, 61U, 61X, 62U, 62X, 6RU, 6RX, 6SU, 6SX)	12J5681
	Miscellaneous Parts Kit 1 (Models 11U, 11X, 41U, 41X, 42U, 42X, 4SU, 4SX, 51U, 51X, 52U, 52X, 5SU, 5SX, 61U, 61X, 62U, 62X, 6RU, 6RX, 6SU, 6SX) 32X5/16 Screws (4 each) M3.5X8 Plastite Screws (2 each) (8 each)-M3X5 (CD/BRKT SCREWS),15- M3.5X7 (PROC CD SCREWS), 6-32X3/16 Screws (8 each) 3.9ID Nylon Washers (2 each) EMC Springs (24 each) Lock Hole Plug (1 each) (1 each)CABLE TIE, (4 each)FAN GROMMETS,	12J3079
	Miscellaneous Parts Kit 2 (Models 11U, 11X, 41U, 41X, 42U, 42X, 4SU, 4SX, 51U, 51X, 52U, 52X, 5SU, 5SX, 61U, 61X, 62U, 62X, 6RU, 6RX, 6SU, 6SX) EMI I/O Gasket EMI PCI/ISA I/O Gasket (1 each)	03K8782
	Miscellaneous Parts Kit 3 (Models 11U, 11X, 41U, 41X, 42U, 42X, 4SU, 4SX, 51U, 51X, 52U, 52X, 5SU, 5SX, 61U, 61X, 62U, 62X, 6RU, 6RX, 6SU, 6SX) M3X5 Handle Screws (5 each) PCI Card/Housing to Shuttle Screws (2 each) Insulator with Light Pipes (5 each) Hot Swap PCI Card Clamps (4 each) Hot Swap PCI Card Guides (5 each) Hot Swap PCI I/O Card Guides (6 each) ISA I/O Card Guide (1 each) PCI Filler Plate Bracket (4 each) Hot Swap Retention Handles (4 each) Switch Card Mounting to Chassis (1 each)	28L4526
	Miscellaneous Rack Parts Kit 4 (Models 1RU, 1RX, 4RU, 4RX, 5RU, 5RX, 6RU, 6RX, 6SU, 6SX) M6X16 Slide/Bracket to Rack Screws (16 each) M3.5X7 EIA Flanges to Chassis Screws (6 each) M4X8 Slides to Chassis Screws (8 each) M6 Slide/Bracket to Rack Nut Clips (6 each) M6 Flange Arm to Bracket Nuts (2 each)	12J3090
	Mouse (Models 11U, 11X, 41U, 41X, 42U, 42X, 4SU, 4SX, 51U, 51X, 52U, 52X, 5SU, 5SX, 61U, 61X, 62U, 62X)	76H0889
	Power Supply Bracket (Models 11U, 11X, 1RU, 1RX, 41U, 41X, 42U, 42X, 4RU, 4RX, 4SU, 4SX, 51U, 51X, 52U, 52X, 5RU, 5RX, 5SU, 5SX, 61U, 61X, 62U, 62X, 6RU, 6RX, 6SU, 6SX)	36L9535
	Power Switch (Button) Assembly with Bracket (Models 11U, 11X, 1RU, 1RX, 41U, 41X, 42U, 42X, 4RU, 4RX, 4SU, 4SX, 51U, 51X, 52U, 52X, 5RU, 5RX, 5SU, 5SX, 61U, 61X, 62U, 62X, 6RU, 6RX, 6SU, 6SX)	01K7003
	Processor Terminator Card (Models 11U, 11X, 1RU, 1RX, 41U, 41X, 42U, 42X, 4RU, 4RX, 4SU, 4SX, 51U, 51X, 52U, 52X, 5RU, 5RX, 5SU, 5SX)	12J2701
	Processor Terminator Card (Models 61U, 61X, 62U, 62X, 6RU, 6RX, 6SU, 6SX)	36L9420
	Rack Slide Bracket Assembly (Models 1RU, 1RX, 4RU, 4RX, 4SU, 4SX, 5RU, 5RX, 5SU, 5SX, 6RU, 6RX, 6SU, 6SX)	03K8775
	Slot 1 Adapter (Models 11U, 11X, 1RU, 1RX, 41U, 41X, 42U, 42X, 4RU, 4RX, 4SU, 4SX, 51U, 51X, 52U, 52X, 5RU, 5RX, 5SU, 5SX)	36L9543
	Slot 1 Adapter (Models 61U, 61X, 62U, 62X, 6RU, 6RX, 6SU, 6SX)	33L4320
	System Battery (Models 11U, 11X, 1RU, 1RX, 41U, 41X, 42U, 42X, 4RU, 4RX, 4SU, 4SX, 51U, 51X, 52U, 52X, 5RU, 5RX, 5SU, 5SX, 61U, 61X, 62U, 62X, 6RU, 6RX, 6SU, 6SX)	33F8354
	System Board without Memory and Processor Card (Models 11U, 11X, 1RU, 1RX, 41U, 41X, 42U, 42X, 4RU, 4RX, 4SU, 4SX, 51U, 51X, 52U, 52X, 5RU, 5RX, 5SU, 5SX)	01K7213
	System Board without Memory and Processor Card (Models 61U, 61X, 62U, 62X, 6RU, 6RX, 6SU, 6SX)	36L9446
	System Board Shield (Models 11U, 11X, 1RU, 1RX, 41U, 41X, 42U, 42X, 4RU, 4RX, 4SU, 4SX, 51U, 51X, 52U, 52X, 5RU, 5RX, 5SU, 5SX, 61U, 61X, 62U, 62X, 6RU, 6RX, 6SU, 6SX)	03K9054
	System Service Label (Models 11U, 11X, 1RU, 1RX, 41U, 41X, 42U, 42X, 4RU, 4RX, 4SU, 4SX, 51U, 51X, 52U, 52X, 5RU, 5RX, 5SU, 5SX, 61U, 61X, 62U, 62X, 6RU, 6RX, 6SU, 6SX)	02K3571
	Voltage Regulator Card (Models 11U, 11X, 1RU, 1RX, 41U, 41X, 42U, 42X, 4RU, 4RX, 4SU, 4SX, 51U, 51X, 52U, 52X, 5RU, 5RX, 5SU, 5SX, 61U, 61X, 62U, 62X, 6RU, 6RX, 6SU, 6SX)	01K7113

	Search Keywords
	Document Category	Service Parts
	Date Created	23-03-99
	Last Updated	24-03-99
	Revision Date	24-03-2000
	Brand	IBM PC Server
	Product Family	Netfinity 5500
	Machine Type	8660
	Model
	TypeModel
	Retain Tip (if applicable)
	Reverse Doclinks and Admin Purposes
