Service Hints & Tips |
Document ID: GSMH-3GGEVE |
Aptiva - 2161 Removals and replacements - Memory (DIMM)
Applicable to: World-Wide
2050 - Memory (DIMM)
Attention: Memory modules are sensitive to static discharge.
Adapter cards (2035) if applicable.
Riser card (if DIMM is located behind riser card).
Push out on the side clamps to release the module.
Pull the module up and out to remove.
Note: Run the Setup Utility after adding or removing memory.

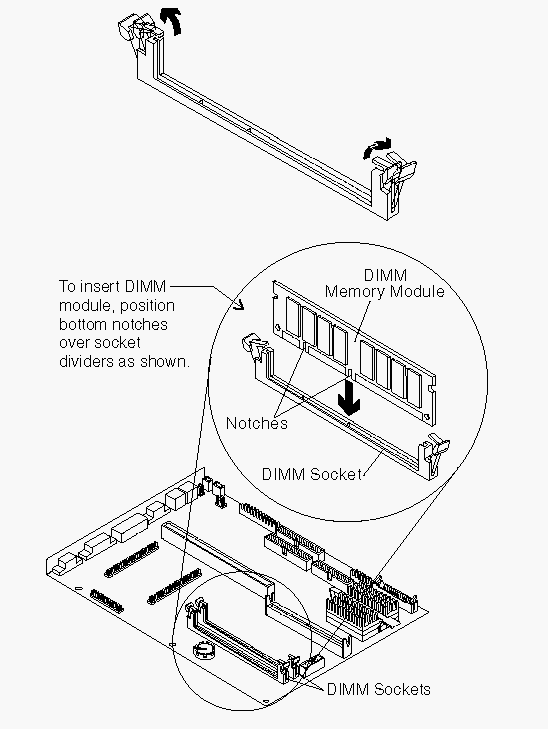

Figure 4-12. Memory DIMM
|
