Parts Information |
Document ID: GSMH-3EFGH6 |
PCServer330 - Internal Drives Bays (Hot Swap Models)
Applicable to: World-Wide

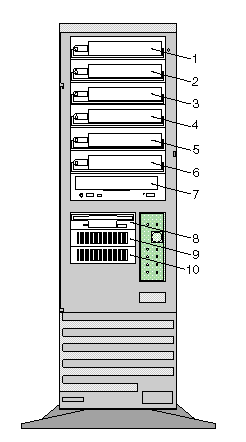

Internal Drive Bays (Hot-Swap Servers):
:
Maximum Allowable Drive Sizes (Hot-Swap Models):
|
Bay |
Drive Width |
Drive Type |
Maximum Drive Height |
|
1-6 |
3.5-inch |
Hard disk, hot-swap |
25.4 mm (1 inch) |
|
7 |
5.25-inch |
CD-ROM |
41.3 mm (1.6 inches) |
|
8 |
3.5-inch |
Diskette |
25.4 mm (1 inch) |
|
9-10 |
3.5-inch |
Hard disk, optical disc, SCSI diskette, 1/4-inch |
41.3 mm (1.6 inches) |
Required Hardware for Drive Options:
|
Option |
Required hardware |
|
3.5-inch drive rewritable optical disc drive |
Special mounting bracket |
|
16-bit devices (bays 1 to 6) |
Hot-swap drive tray III |
|
Storage enclosure or external drives. |
External SCSI-2 cable |
|
8-bit device |
68-to-50 pin converter |
|
