Service Hints & Tips

Document ID: BMOE-42EKLL

TP 390,390E,1720 - LCD FPC ASM 14.1" Removal

Applicable to: World-Wide

The following information is intended for IBM Dealers and Authorized Servicers only. Customers attempting to follow any of the procedures below may void their warranty.

• Battery ASM
• Hard Disk Drive
• Combo Bay
• Keyboard
• LCD Bezel ASM 14.1"
• Speaker ASM 14.1"
• VR Board ASM 14.1"
• Microphone ASM 14.1"
• LCD Panel ASM 14.1"

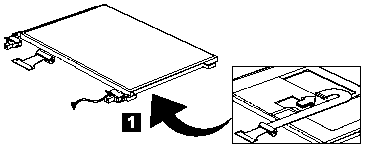

Disconnect the LCD FPC cable from the LCD.
Note: The LCD FPC cable has a double-sided adhesive tape attached on its back side. Two current black tapes (LCD FPC Stopper Tape) must be applied to
this cable.

	Search Keywords
	Hint Category	Hardware Installation/Configuration
	Date Created	20-11-98
	Last Updated	23-03-99
	Revision Date	23-03-2000
	Brand	IBM ThinkPad
	Product Family	ThinkPad 390, ThinkPad i Series 172x
	Machine Type	2626, 2627
	Model	Various
