Netfinity 5500 M10 - System Board component locations and System Board jumpers

39.803 bytes

Product Information

Document ID: MCGN-437Q2H

Netfinity 5500 M10 - System Board component locations and System Board jumpers

Applicable to: World-Wide

Source: Hardware Maintenance Manual

System Board Component Locations

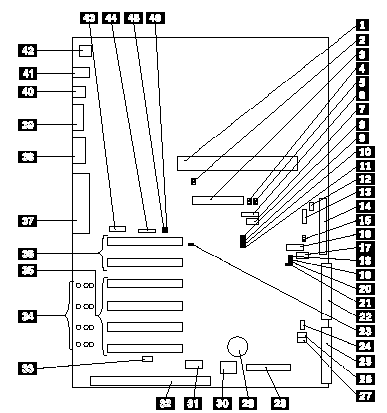

The following illustration shows a layout of the system board and identifies system-board components. You might need to refer to this figure before you install hardware in your server. You might also need to refer to this figure when you set configuration jumpers on the system board.

1 Processor board connector (J19)
2 Advanced System Management Processor error LED (CR24)
3 RAID channel 1 connector (J7)
4 RAID channel 1 error LED (CR30)
5 RAID channel 2 error LED (CR31)
6 Reserved (J54)
7 Reserved (J64)
8 Disable RAID controller jumper block (J11)
9 Reserved (J45)
10 Power on control jumper block (J32)
11 Reserved (J25)
12 Reserved (J9)
13 Power backplane cable connector (J8)
14 RAID channel 2 connector (to backplane) (J3)
15 RAID system error LED (CR32)
16 Reserved (J27)
17 Reserved (J35)
18 SCSI activity LED connector (J52)
19 Reserved (J34)
20 Reserved (J29)
21 Reserved (J26)
22 IDE connector (J33)
23 Disable Advanced System Management Processor jumper block (J51)
24 Fan connector (J36)
25 Diskette drive connector (J22)
26 Power on password override jumper block (J24)
27 Flash ROM page swap jumper block (J30)
28 Control panel connector (J20)
29 Battery
30 Reserved (J46)
31 Hot-plug PCI controller programmer interface connector (J53)
32 ISA expansion slot
33 Hot-plug switch connector (J16)
34 PCI slot LEDs (four are on the side of the board)
35 PCI (hot-plug) slots 1û4 (on secondary PCI bus)
36 PCI slots 5 and 6 (on primary PCI bus)
37 Parallel port connector (J56) (Serial port A and B connectors are below the parallel port connector.)
38 Video port connector (J2)
39 Management port C connector (J42)
40 USB 1 and USB 2 port connectors (USB 2 is below USB 1.) (J31)
41 Mouse and keyboard connectors (J1) (The mouse connector is above the keyboard connector.)
42 Ethernet port connector (J4)
43 Reserved (J17)
44 Reserved (J18)
45 Disable Ethernet controller jumper block (J5)
46 Disable video controller jumper block (J14)

System Board Jumpers
Table 12 describes the jumpers on the system board. The numbers in the table correspond to the highlighted numbers on the illustration in "System Board Component Locations".

Note
Turn off the server, and disconnect the power cords before moving any jumpers.

Table 12. System Board Jumpers

Jumper Name

Description

8 J11 Disable RAID controller

The default position is Enabled (jumper on pins 1 and 2).
Move the jumper to pins 2 and 3 to disable the RAID controller.

9 J45 Reserved

The default position is a jumper on pins 2 and 3.

10 J32 Power on control

The default position is normal operation (jumper on pins 1 and 2).
Moving the jumper to pins 2 and 3 allows the power supply to be
turned on without a control panel or Netfinity Advanced System
Management Processor.

11 J25 Reserved

The default position is a jumper on pins 1 and 2.

12 J9 Reserved

The default position is a jumper on pins 1 and 2.

19 J34 Reserved

The default position is a jumper installed on pins 1 and 2.

20 J29 Reserved

The default position is a jumper installed on pins 1 and 2.

21 J26 Reserved

The default is no jumper installed on J26.

23 J51 Disable Advanced System
Management Processor

In normal operation, there is no jumper on J51.
Installing a jumper on J51 disables the Netfinity Advanced System
Management Processor.

26 J24 Power on password override

Changing the position of this jumper bypasses the power-on
password check if the jumper has been moved since the server
was last powered on. You do not need to move the jumper back
to the default position after the password is overridden.

Changing the position of this jumper does not affect the
administrator password check if an administrator password is set.

27 J30 Flash ROM page swap

The default position is a jumper installed on pins 2 and 3.
Changing the position of this jumper will change which of the two
pages of Flash ROM is used when the system is started.

45 J5 Disable Ethernet controller

The default position is Enabled (jumper on pins 1 and 2). Move the
the jumper to pins 2 and 3 to disable the Ethernet controller.

46 J14 Disable video controller

The default position is Enabled (jumper on pins 1 and 2). Move the
the jumper to pins 2 and 3 to disable the video controller.
