Aptiva - 2162 Media Console parts diagram & numbers
Applicable to: World-Wide

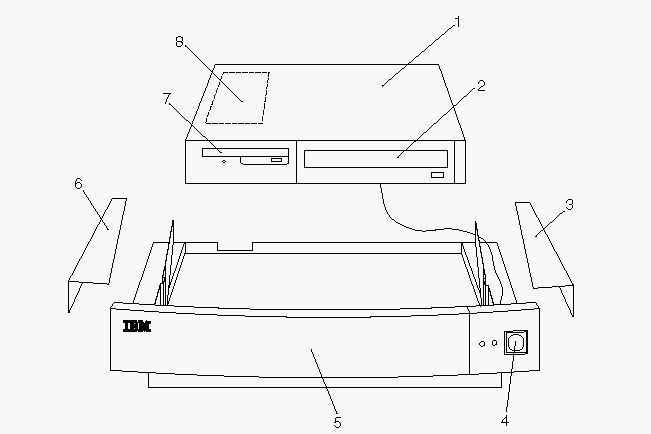

Assembly 4: Media Console
|
Asm-Index |
PartNumber |
Units |
Description |
|
4-NS |
76H6907 |
|
Media Console Assembly |
|
|
12J6350 |
|
Console 24X CD-ROM (S35) |
|
-NS |
76H6906 |
|
Media Console Assembly (Japan)Note: |
|
-1 |
76H1733 |
|
Media Console Base/Top Covers |
|
-2 |
76H6105 |
|
CD-ROM Drive(16X MAX) |
|
-3 |
76H1732 |
|
Right Wing Cover |
|
-4 |
76H4738 |
|
On/Off Switch Assembly |
|
-5 |
76H1733 |
|
Media Console Base/Top Covers |
|
-6 |
76H1731 |
|
Left Wing Cover |
|
-7 |
75H9550 |
|
3.5-in. 1.44 MB Diskette Drive |
|
-7 |
75H9552 |
|
3.5-in. 1.44 MB Diskette Drive(Japan, Hong Kong, Korea and Taiwan) |
|
-8 |
76H6902 |
|
Client Card |
|
-NS |
60G2254 |
|
CD-ROM/Hardfile Cable |
|
-NS |
76H3649 |
|
CD-ROM Audio Cable |
Media Console Physical Specifications
Weight 6.8 lbs (aprox 3 kg)
Back Width: 331 mm
Front Width: 392.6 mm
Depth: 263 mm
Thickness: 56 mm
|
