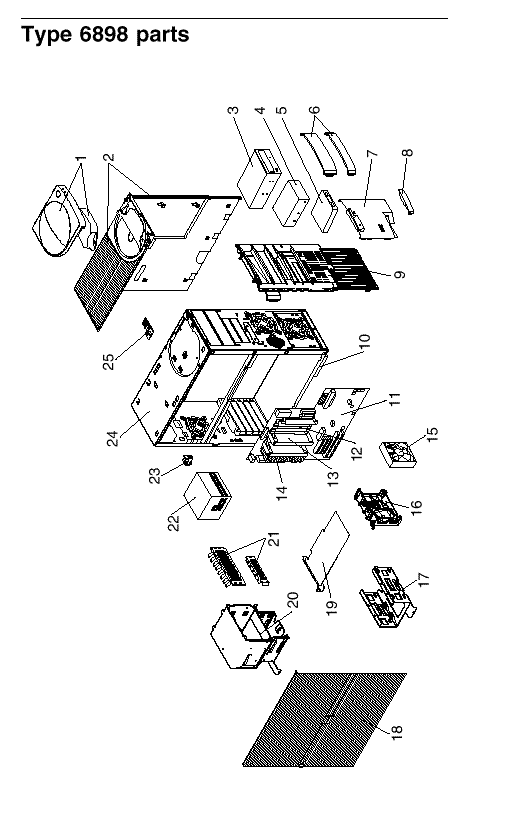

IBM IntelliStation M Pro (Type 6898) - Parts diagram/FRU listing
Applicable to: World-Wide
|
Index |
System (Type 6898) |
FRU No. |
|
1 |
Handle/Cap Assembly |
12J5547 |
|
2 |
Top/Side Cover Assembly |
01K1637 |
|
|
(Order either of the below 24X Max CD-ROM drives that match the FRU number of the drive being replaced) | |
|
3 |
CD-ROM Drive 24X Max |
12J3525 |
|
3 |
CD-ROM Drive 24X Max |
12J3527 |
|
4 |
4.2 GB Hard Disk Drive EIDE |
02K1146 |
|
4 |
4.5 GB Hard Disk Drive SCSI |
00K7929 |
|
4 |
6.4 GB IDE Hard Disk Drive |
75H9921 |
|
4 |
6.4 GB EIDE Hard Disk Drive |
10L6078 |
|
4 |
9.1 GB Hard Disk Drive SCSI |
02K1141 |
|
5 |
3.5-In. 1.44 MB Diskette Drive |
75H9550 |
|
5 |
3.5-In. 1.44 MB Diskette Drive - Japan |
75H9552 |
|
6 |
Blank Louver Bezels (3.5-In. and 5.25-In.) |
01K1888 |
|
7 |
3.5-In. Bezel Assembly |
12J5549 |
|
8 |
Name Plate |
12J5552 |
|
9 |
Front Bezel |
12J5548 |
|
10 |
Foot (Qty 4) |
12J4506 |
|
11 |
System Board with SCSI onboard adapter-without processor or memory |
08L0606 |
|
|
Processor Retainer Support Kit |
03K9570 |
|
12 |
32 MB ECC DIMM Memory |
01K1125 |
|
12 |
64 MB ECC DIMM Memory |
01K1126 |
|
12 |
128 MB ECC DIMM Memory |
01K1127 |
|
13 |
Terminator Card, Processor |
12J2701 |
|
14 |
233 MHz Processor |
12J2700 |
|
14 |
266 MHz Processor |
01K2169 |
|
14 |
300 MHz Processor |
01K4291 |
|
14 |
333 MHz Processor |
01K2167 |
|
15 |
Fan Assembly 92 mm |
02K2861 |
|
16 |
Card Guide |
10L5607 |
|
|
Speaker |
06H9417 |
|
17 |
3.5-In. Hard Disk Bracket |
12J4516 |
|
18 |
Access Cover Assembly |
12J5546 |
|
19 |
Video Adapter - Appian |
01K4488 |
|
19 |
Video Adapter - Permedia II |
33L1609 |
|
19 |
Video Adapter - 3D PRO 2200/T |
01K2014 |
|
19 |
Video Adapter - Matrox Millenium |
01K4340 |
|
20 |
3.5/5.25-In. Hard Disk Bracket |
12J4501 |
|
21 |
EMC Kit |
12J4508 |
|
22 |
Power Supply 330 W. |
01K9866 |
|
23 |
Keylock Assembly |
12J5102 |
|
24 |
Chassis Assembly |
12J4515 |
|
25 |
Power/LED Panel Cable Assembly |
12J4510 |
|
|
Air Baffle |
02K2864 |
|
C2 Switch Assembly |
01K1495 | |
|
Cable - Audio CD-ROM |
75H9219 | |
|
|
Cable - CD-ROM IDE |
01K1475 |
|
Cable - Diskette Drive |
76H4228 | |
|
|
Cable - Hard Disk IDE |
12J4518 |
|
Cable - SCSI 2 Drop |
01K1499 | |
|
Cable - SCSI 4 Drop |
01K1497 | |
|
Cable - SCSI LED |
76H7344 | |
|
Cable - Wake On Ring |
76H7345 | |
|
|
Miscellaneous Blank Bezels |
12J5550 |
|
Miscellaneous Hardware Kit including card guide |
12J4503 | |
|
|
Miscellaneous Optional Bezels |
12J5551 |
|
|
System Board EMC Shield |
01K1855 |
|
