Parts Information |
Document ID: COBN-3GGANL |
Aptiva - 2161 System unit exterior service parts
Applicable to: World-Wide

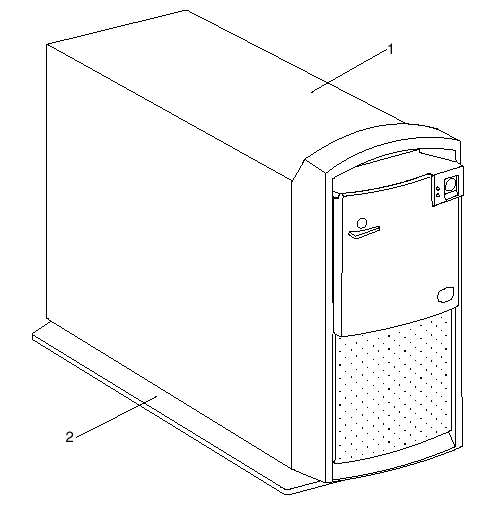

Assembly 1: Machine Type 2161 System Unit - Exterior (SL-A)
|
Asm- |
Part |
Units |
Description |
|
1-1 |
Top Cover Assembly (Does not include system base. | ||
|
-1 |
42H0343 |
1 |
Machine Type 2161 Top Cover (includes logo and labels) |
|
-NS |
42H0345 |
1 |
5.25-in. Blank Bezel |
|
-NS |
42H0348 |
1 |
Pull-Down Door |
|
-NS |
60G1995 |
1 |
Top Cover Mounting Screws |
|
-2 |
34G1861 |
1 |
Pedestal |
|
-NS |
10H3080 |
1 |
Feet(4) |
|
Search Keywords |
| |
|
Document Category |
Service Parts | |
|
Date Created |
25-04-97 | |
|
Last Updated |
07-04-99 | |
|
Revision Date |
07-04-2000 | |
|
Brand |
IBM Aptiva | |
|
Product Family |
Aptiva | |
|
Machine Type |
2161 | |
|
Model |
all | |
|
