Parts Information |
Document ID: COBN-3G5FE9 |
Aptiva - 2162 System unit exterior service parts
Applicable to: World-Wide
|
Asm- |
Part |
Units |
Description |
|
1-1 |

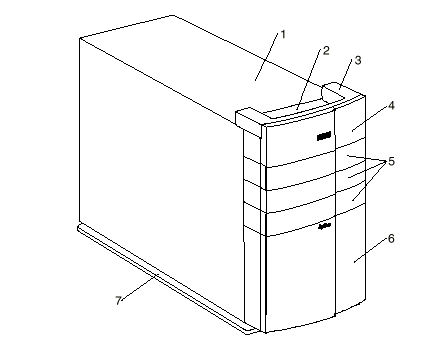

Top cover assembly with bezel and handle (Does not include system base) | ||
|
-1 |
76H3641 |
1 |
Machine Type 2162 Top cover |
|
-2 |
76H3644 |
1 |
Front Cover |
|
-3 |
76H3643 |
1 |
Handle |
|
-4 |
76H3645 |
1 |
Bezel, Facade |
|
-5 |
76H3642 |
3 |
Bezel, Blank |
|
-6 |
76H3646 |
1 |
Bezel, Belly |
|
-7 |
76H1735 |
1 |
Pedestal |
|
-NS |
34G1861 |
1 |
Feet(4) |
|
