Netfinity 7000 M10 - Processor Board Assembly Removal
Applicable to: World-Wide
Source: Hardware Maintenance Manual
|
Before you begin: |
To Remove the processor board, do the following:
1. Power-off the system.
2. Disconnect all power to the system.
3. Remove the top cover, see "Removing the Top Cover".
4. Remove the front bezel, see "Removing the Front Bezel".

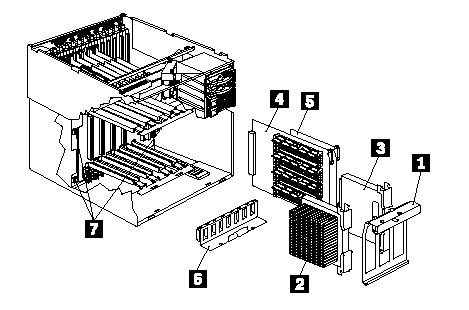

5. Remove the following items, see "Microprocessor Kit Installation".
a. Processor Retention Bracket 1
b. Processor(s) 2
c. Processor Terminator Card 3
d. Memory Card 4
e. Memory Terminator Card 5
f. VRM Retention Bracket 6
6. Disconnect the processor board cables.
7. Remove the shuttle assembly, see "Shuttle Assembly Removal".
8. Turn the three quarter-turn fasteners 7 and remove the processor board assembly.
Quarter-Turn Fastener
The following drawing shows the quarter-turn fastener lock and unlock positions.
|
