Service Hints & Tips |
Document ID: GSMH-3D6G95 |
|
This document is provided to IBM and our Business Partners to help sell and/or service IBM products. It is not to be distributed beyond that audience or used for any other purpose. |
TP 710T - System Board Connector (Top View)
Applicable to: World-Wide

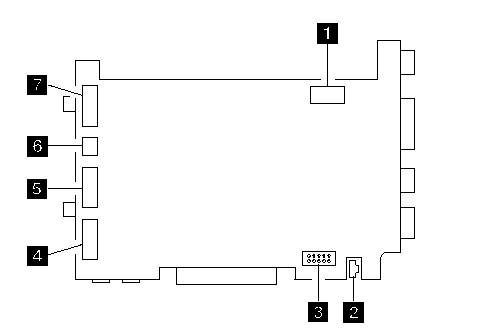

System Board Connector (Top View):
|
1 |
Power Switch Cable Connector |
|
2 |
LCD Power Connector |
|
3 |
Switch and LED Card Connector |
|
4 |
Digitizer Cable Connector |
|
5 |
LCD Cable Connector |
|
6 |
Sub Battery Connector |
|
7 |
Digitizer Cable Connector |
|
Search Keywords |
| |
|
Hint Category |
Hardware Maintenance Information | |
|
Date Created |
09-01-97 | |
|
Last Updated |
15-04-98 | |
|
Revision Date |
09-04-99 | |
|
Brand |
IBM ThinkPad | |
|
Product Family |
ThinkPad 710 | |
|
Machine Type |
2523 | |
|
Model |
Various | |
|
TypeModel |
| |
|
Retain Tip (if applicable) |
N/A | |
|
