Product Information

Document ID: DDSE-426RZJ

Servers - SCSISelect Utility Program

Applicable to: World-Wide

SCSISelect Utility
The server comes with a menu-driven configuration utility program, called SCSISelect, that allows you to view and change SCSI settings.

You can use the SCSISelect Utility program to:
View and change the default SCSI identification (IDs)
Verify and change configuration conflicts
Perform a low-level format on a SCSI hard disk.

Starting the SCSISelect Utility Program:
You can access this program when you start the server. The SCSISelect prompt appears after the server logo appears. Press Ctrl+A immediately after the SCSISelect prompt appears:

<<< Press <CTRL><A> for SCSISelect Utility! >>>

Use the Up Arrow or Down Arrow key to move the highlight bar to the various menu choices. Press Esc to return to the previous menu. Also, you can press the F5 key to switch between color and monochrome modes (if the monitor permits). To change the settings of the displayed items, such as Channel A or Channel B, follow the directions on the screen. Then, press Enter.

SCSISelect Utility Program Choices:
The following choices appear on the SCSISelect Utility program menu:
Configure/View Host Adapter Settings
SCSI Disk Utilities

Configure/View Host Adapter Settings:
To view or change the SCSI controller settings, select Configure/View Host Adapter Settings and follow the directions on the screen.

Note
On this menu, the SCSI controller is referred to as the Host Adapter.

This menu has the following choices:
Host Adapter SCSI ID
The default SCSI ID of the SCSI controller is 7. Do not change this value.

SCSI Parity Checking
The default value is Enabled. Do not change this value.

Host Adapter SCSI Termination
The default value is Low On / High On. Do not change this value.

Boot Device Configuration
Select this choice to configure startable device parameters. Before you can make updates, you must know the ID of the device whose parameters you want to configure. The default startup (boot) SCSI ID is 0 for an internal SCSI hard disk drive in Channel A.

SCSI Device Configuration
Select this choice to configure SCSI device parameters. Before you can make updates, you must know the ID of the device whose parameters you want to configure.

Note
When the Maximum Sync Transfer Rate is set to 40.0, this value represents the transfer rate for UltraSCSI devices. When this value is set to 20.0, it represents the transfer rate for Fast SCSI devices.

Advanced Configuration Options
Select this choice to view or change the settings for advanced configuration options. These options include setting the SCSI ID scanning order, and enabling support for large hard disk drives, for a startable CD-ROM, Int 13Extensions, and for drives with Ultra speed. To reset the SCSI controller defaults, press F6; then, follow the instructions on the screen.

Note

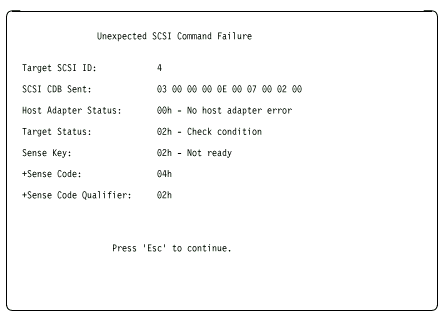

If you see the following message, you might have pressed Ctrl+A before the selected drives were ready. Restart the server, and watch the SCSISelect messages as each drive spins up. After the drive that you want to view or format spins up, press Ctrl+A.

SCSI Controller Settings/Description
The following is a list of the Configuration/View Host Adapter Settings and descriptions.

SCSI Controller Settings

Description

Host Adapter SCSI ID

Change the SCSI ID of the SCSI-2 controller from its
default value of 7

SCSI Parity Checking

Enable or disable parity checking on the SCSI-2 adapter
or controller. The default value is enabled.

Host adapter SCSI Termination

Configure SCSI-2 adapter or controller termination. The
default value is Low On/High On.

SCSI Device Configuration

Configure SCSI device parameters. Before you can make
updates, you must know the ID of the device whose
parameters you want to configure.

Advanced Configuration Options

View or change the settings for advanced configuration
options. These include:

- Startable CD-ROM drive. When set to On, the CD-ROM
drive can be included as a startup device for this option
to take effect, you must insert a startable CD in the
CD-ROM drive.

- Int13Extensions. When set to On , these BIOS
extensions are enabled.

- Reverse Scan. When Reverse Scan is set to Off and
the SCSI controller is set to the default value of 7.
Scanning order proceeds from 0 to 6, then 8 to 15. When
this choice is set to On, the scanning order proceeds
from SCSI ID 6 to 0, then 15 to 8.

SCSI Disk Utilities
To see the IDs that are assigned to each SCSI device or format a drive, select SCSI Disk Utilities from the SCSISelect Utility program menu. To use the utility program, select a drive from the list. Read the screens carefully before making a selection.

Using the Low-Level Format Program
On non-disk array models, you have the option of formatting your hard disk using the Low-Level Format feature of the SCSISelect Utility program.

Depending on the hard disk capacity, the Low-Level Format program could take up to two hours.

For disk-array models, you must use the programs provided on the RAID Configuration diskette to format your hard disk drives. Refer to 'Disk Array Configuration— for instructions.

When To Use the Low-Level Format Program
Use the Low-Level Format program:
- When you are installing software that requires a low-level format
- When you get recurring messages from the diagnostic tests directing you to run the Low-Level Format program on the hard disk
- As a last resort before replacing a failing hard disk drive

For information about backing up all of the files, see the operating-system documentation for the system you are servicing.

Starting the Low-Level Format Program

Attention
The Low-Level Format program erases all data and programs.

1. If the hard disk is working, make a backup copy of all the files and programs on the hard disk.
2. Select Format disk from the SCSISelect Disk Utilities menu; then follow the instructions on the screen.
3. To install an operating system, refer to the ServerGuide CD documenation.

Search Keywords

Document Category

Configuration

Date Created

12-11-98

Last Updated

09-12-98

Revision Date

09-12-99

Brand

IBM PC Server

Product Family

Netfinity 3500, PC Server 300, PC Server 310, PC Server 315, PC Server 320, PC Server 325, PC Server 330, PC Server 500, PC Server 520, PC Server 720, Rack/Storage Enclosures

Machine Type

8644, 8640, 8639, 8638, 8641, 8642, 3517, 3518

Model

ALL

TypeModel
