Service Hints & Tips |
Document ID: COBN-3HABP2 |
TP 380,385 - Fan removal diagram
Applicable to: World-Wide
The following information is intended for IBM Dealers and Authorized Servicers only. Customers attempting to follow any of the procedures below may void their warranty.
1110 Fan
Battery Pack (1010)
DIMM Cover (1020)
Keyboard Unit (1030)
CD-ROM/FDD Assembly (1040)
LCD Unit (1070)
Hard Disk Drive (1060)
System Board Assembly (1080)
Notes:

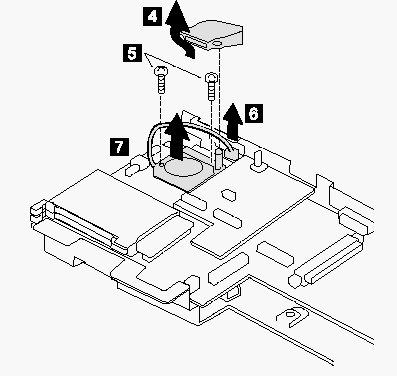

1. Be careful not to touch the rotor and blade of the fan when assembling or disassembling.
2. Fix the fan cable on the air duct by using the cable holder when replacing.
|

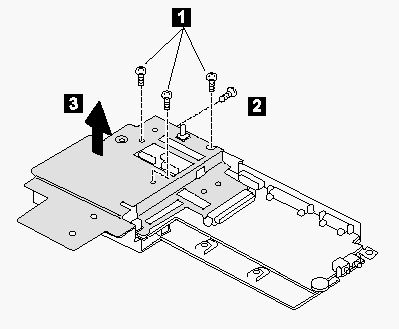

Step |
Location (Quantity) |
Length |
|
1 |
Upper shield (3) |
M 2.5 x 6mm |
|
2 |
Upper shield (1) |
M 2.5 x 8mm |
|
5 |
Fan (2) |
M 2 x 6mm |
|
Note: When replacing, make sure you use the correct screw. |
|
Search Keywords |
| |
|
Hint Category |
Hardware Maintenance Information | |
|
Date Created |
21-05-97 | |
|
Last Updated |
19-08-98 | |
|
Revision Date |
17-08-99 | |
|
Brand |
IBM ThinkPad | |
|
Product Family |
ThinkPad 380, ThinkPad 380D, ThinkPad 380E, ThinkPad 380ED, ThinkPad 380XD, ThinkPad 385D, ThinkPad 385E, ThinkPad 385ED, ThinkPad 385XD | |
|
Machine Type |
2635 | |
|
Model |
Various | |
|
