Parts Information

Document ID: COBN-3GGATV

Aptiva - 2161 System unit interior parts

Applicable to: World-Wide

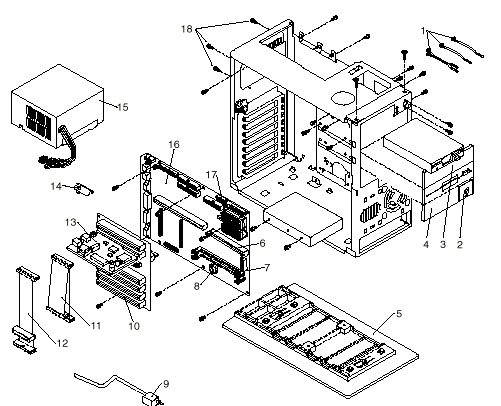

Assembly 2: Machine Type 2161 System Unit - Interior (SL-A)

Asm- Index	Part Number	Units	Description
2-1			System Board Note: All system board FRUs are shipped without processor, cache memory module, shorting block/regulator module, or DIMM. When replacing a system board, remove all FRUs from the original system board and install them on the new system board.
	93F2388		LED Indicator Cable (Hard Disk)
	93F2389		LED Indicator Cable (Power)
	13H8078		DUAL LED Indicator Cable (Power/HD)
	42H0347		Blank Audio Panel
	42H0345		5.25-in. Bay Blank Bezel
	42H0344		3.5-in. Bay Blank Bezel
	76H1585		ZIP Drive Blank Bezel
	34G1861		Pedestal
	07H1150		L2 Cache, 256 MB
	76H6915		DIMM, 16 MB, SDRAM
	76H6916		DIMM, 32 MB, SDRAM
	93F0063		Lithium Battery (CR2032)
	60G2258		Power Switch and Cable
	12H2025		Riser Card, ISA/PCI
	60G2254		CD-ROM/Hard Disk Drive Cable
	75H8905		Diskette Drive Cable
	76H1777		Hard Disk Drive Ribbon Cable
	41H7819		Wake Up On Ring Cable
	10H2924		CD-ROM Audio Cable (Model C9S) Modem Card Sound Card
	60G2077		Bracket, Riser Card Support
	75H8483		Power Supply (3.52 V dc) (145-W LV/HV Switch-selectable)
	55H6630		Power Supply (3.3 V dc) Japan (145-W LV/HV Switch-selectable Japan only)
	93H2477		System Board, Type 2161
	06H8228		P54C-133 MHz Processor
	42H4865		P55C-166 MHz Processor
	42H4866		P55C-200 MHz Processor
	06H1796		Processor Fan
	07H1687		Shorting block (P54C only)
	76H3658		Voltage Regulator Module (P55C only)
	93F0067		Jumper, 2 position (Packet of 4)
	93F0041		Packet (Mounting Screws)
