Service Hints & Tips |
Document ID: MNOK-3UUR94 |
Aptiva - 2176-C6Z - How to connect CD-ROM audio cable
Applicable to: World-Wide

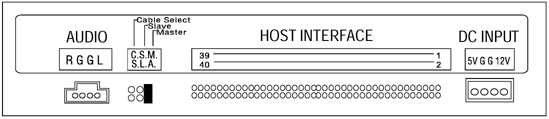

Locate the four pin audio cable connection on the back of the CD-ROM drive, this is normally labeled AUDIO or CD-AUDIO, and connect one end of the audio cable.

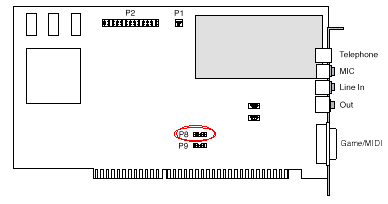

On the Mwave card locate socket P8, circled in red below, and connect the other end of the audio cable.
|
Search Keywords |
| |
|
Hint Category |
Audio, CD-ROM Drives, Hardware Installation/Configuration, Cables, Mwave | |
|
Date Created |
26-05-98 | |
|
Last Updated |
11-01-99 | |
|
Revision Date |
11-01-2000 | |
|
Brand |
IBM Aptiva | |
|
Product Family |
Aptiva | |
|
Machine Type |
2176 | |
|
Model |
9R1; C6Z | |
|
