Service Hints & Tips |
Document ID: DETR-3TAQUC |

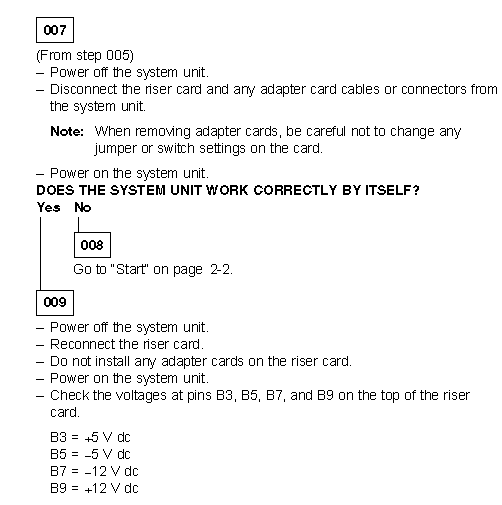

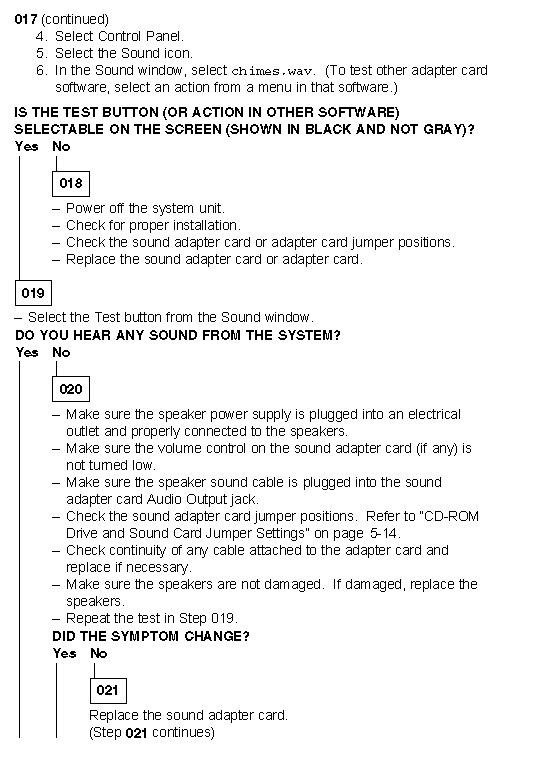

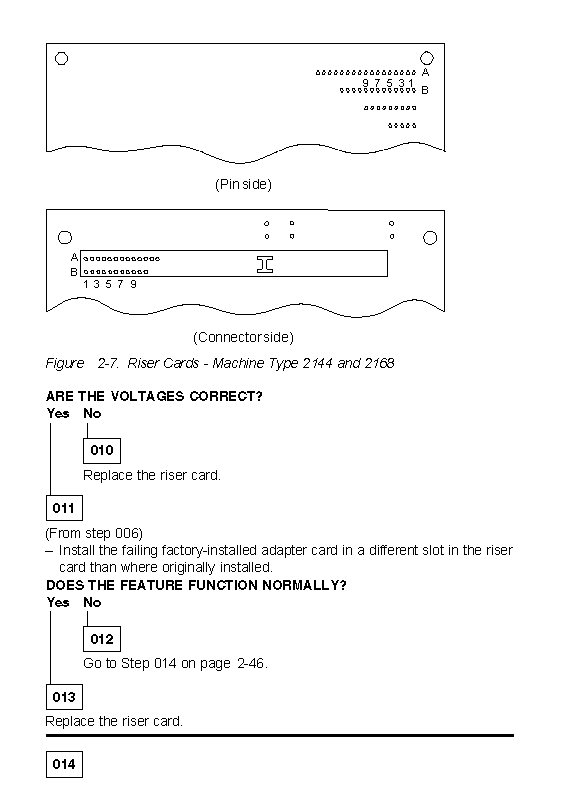

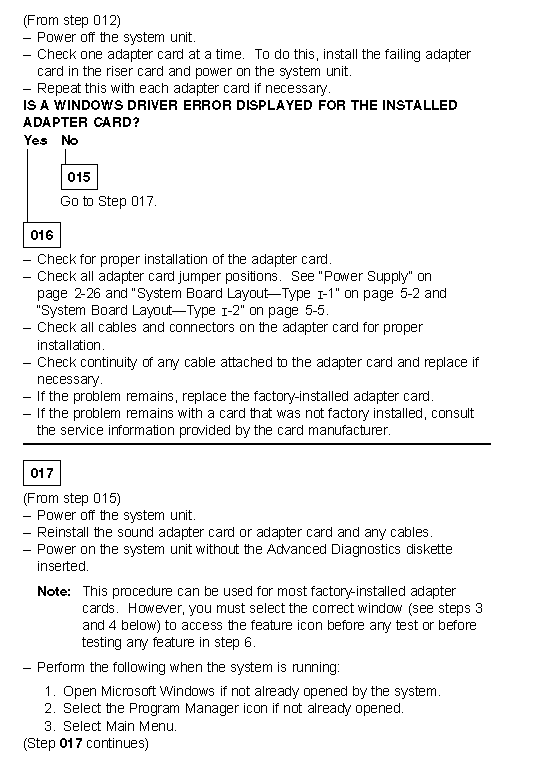

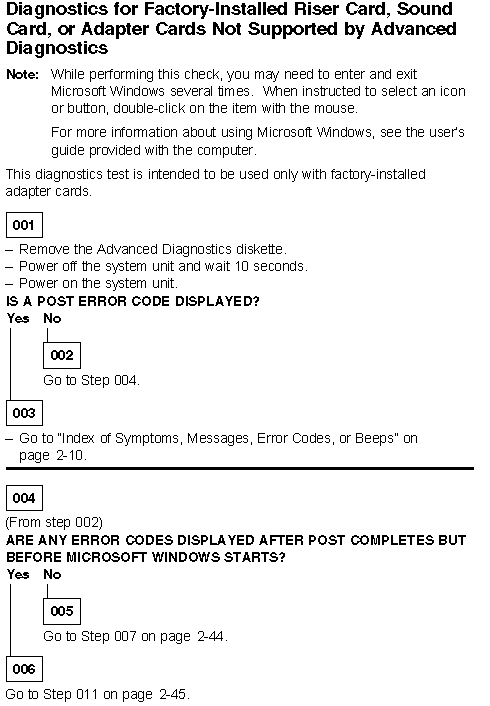

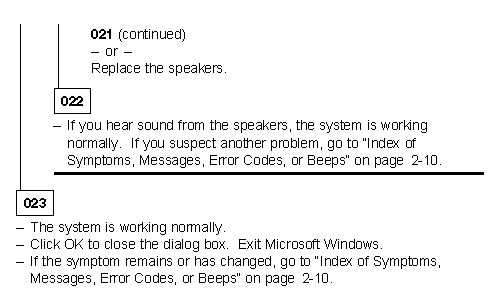

Aptiva - 2144/2168 (SL-F/H/I) Diagnostics - Diagnostics for factory-installed riser card, sound card, or adapter cards not supported by advanced diagnostics
Applicable to: World-Wide
|
Search Keywords |
| |
|
Hint Category |
Diagnostics, Riser Cards, Adapter Cards, Audio | |
|
Date Created |
02-10-96 | |
|
Last Updated |
10-02-99 | |
|
Revision Date |
10-02-2000 | |
|
Brand |
IBM Aptiva | |
|
Product Family |
Aptiva | |
|
Machine Type |
2144, 2168 | |
|
Model |
A10; A12; A14; A15; A40; A44; A45; A50; A51; A52; A90; A92; A94; 5R1; 6R3; 5R2; 5R3; 6R4; 5R4; 6R0; 5R6; 5R8; 5R9; 6R5; C45; 120; 121; 123; 131; 132; 133; 141; 142; 152; 154; 161; 162; 163; 171; 172; 182; L11; L15; L16; K25; K26; L33; K33; L43; K43; L35; K35; L45; K45; KU5; L55; K55; L65; K65; L66; K66; U11; U15; U16; U33; U43; U35; U45; U55; U65; U66; X17; X27; X37; X47; Y17; Y27. Y37; Y47; Z17; Z27; Z37; Z47; S20; S50; S55; S65; S64; S74; S75; W37; W47; M30; M31; M35; M50; M51; M52; M63; 2R5; 3R4; 2R7; 2R6; 3R5; 2R8; 3R6; 4R1; 4R2; 4R7; 2R9; 3R3; 3R1; 4R8; 3R0; 3R7; 4R0; 4R9; 3R8; 3R9; 4R3; 5R5; M40; M41; M53; M54; M55; M56; M57; M58; M60; M61; M62; M70; M71; M72; M91; 900; 910; 911; 91W; 914; 921; 92W; 931; 93W; 932; 9W2; 934; 935; 937; 930; 941; 94W; 951; 95W; 964; 96W; Y10; Y20; Y30; Y40; Z10; Z20; Z30; Z40; X10; X20; X30; X40; W30; N30; N40; N41; N50; N51; N60; N61; N71; LL1; LL2; LL3; LL4; LL5; LL6; LB0; L10; L20; L30; L40; L50; L60; KB0; K10; K20; K30; K40; K50; K60; KU4; KU6; P30; 2R0; LS0; LP0; LS1; LSA; LSC; LS2; LSB; LS3; LSD; LP1; LPA; LPC; LP2; LPB; LPD; KP1; KPA; KPC; KPE; KP2; KPB; KPD; KU0; KU2; KU1; KU3; XP1; XP2; YP1; YP2; 70J; 71J | |
|
TypeModel |
| |
|
Retain Tip (if applicable) |
| |
|
Reverse Doclinks |
