TP 720 - Parts Listing
Applicable to: World-Wide

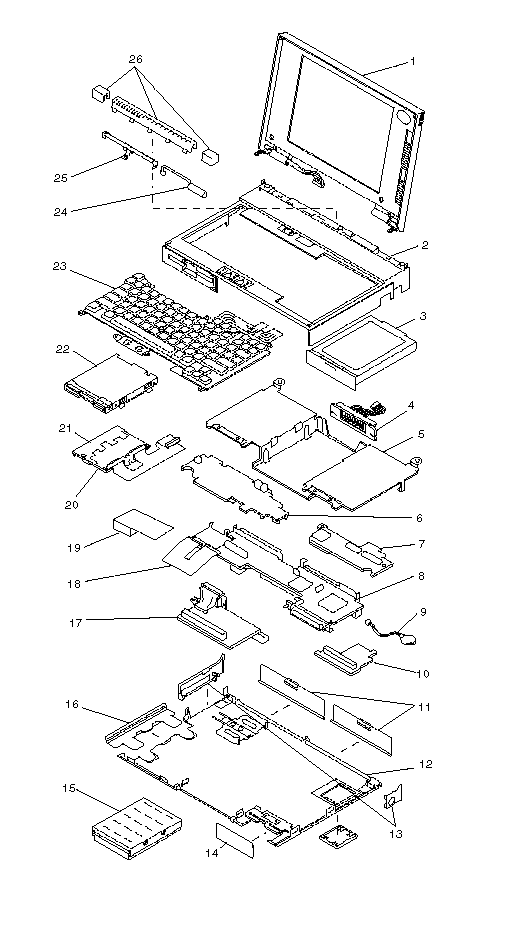

Parts Listing (720, 720C):
Index:
|
1 |
LCD (720)3 |
44G3806 |
|
For Germany (Gray)3 |
48G9321 | |
|
LCD (720C)3 |
53G8137 | |
|
For Germany (Gray)3 |
53G8138 | |
|
1 |
LCD Bezel Assembly (720)3 |
53G7831 |
|
For Germany (Gray)3 |
53G7832 | |
|
1 |
LCD Hinge Kit |
85G8199 |
|
1 |
LCD Case |
44G3875 |
|
2 |
Frame, Keyboard (720) |
53G9211 |
|
For Germany (Gray) |
53G9179 | |
|
Frame, Keyboard (720C) |
53G9212 | |
|
For Germany (Gray) |
53G9180 | |
|
For Japan |
53G9209 | |
|
3 |
Battery Pack, Nickel Metal Hydride |
44G3811 |
|
For Belgian and Dutch |
49G2190 | |
|
For Germany (Gray) |
49G2036 | |
|
For Swiss |
44G3812 | |
|
4 |
Battery Terminal Assembly |
53G9202 |
|
5 |
Frame, Stiffener |
44G3771 |
|
6 |
Voltage Converter w/ lid suspend switch |
53G8114 |
|
7 |
Keyboard Control Card | |
|
84-key |
44G3783 | |
|
85-key |
49G2096 | |
|
89-key |
49G2097 | |
|
8 |
System Board (720) |
53G9204 |
|
8 |
240MB Upgrade System Board (720) |
53G7826 |
|
8 |
System Board (720C) |
53G9205 |
|
8 |
240MB Upgrade System Board (720C) |
53G7827 |
|
Power Switch Knob/Actuator |
49G2140 | |
|
For Germany (Gray) |
49G2156 | |
|
LED Junction |
53G9208 | |
|
9 |
Backup Battery, Lithium |
44G3778 |
|
10 |
Processor Card |
54G1045 |
|
11 |
I/O Connectors Cover Group |
44G3769 |
|
For Germany (Gray) |
48G9315 | |
|
12 |
Bottom Cover Assembly (720) |
53G9217 |
|
For European Countries |
53G9219 | |
|
For Belgian and Dutch |
53G9221 | |
|
For Germany (Gray) |
53G9181 | |
|
Bottom Cover Assembly (720C) |
53G9218 | |
|
For European Countries |
53G9220 | |
|
For Belgian and Dutch |
53G9222 | |
|
For Germany (Gray) |
53G9182 | |
|
For Japan |
53G9215 | |
|
13 |
Model Unique Cover (720) |
53G9183 |
|
For Germany (Gray) |
53G9185 | |
|
Model Unique Cover (720C) |
53G9184 | |
|
For Germany (Gray) |
53G9186 | |
|
14 |
Door, Hard Disk Drive |
53G9172 |
|
For Germany (Gray) |
53G9173 | |
|
15 |
Hard Disk Drive | |
|
120MB |
95F4744 | |
|
160MB |
54G0137 | |
|
240MB |
66G3200 | |
|
16 |
Cover, IC DRAM Card |
53G9187 |
|
For Germany (Gray) |
53G9188 | |
|
17 |
Video Card (720) |
53G9206 |
|
Video Card (720C) |
53G9207 | |
|
18 |
Cable, Diskette Drive |
53G9201 |
|
19 |
PCMCIA Card Slots |
53G9190 |
|
20 |
Base Memory Card, 4MB |
53G9203 |
|
21 |
Slot Holder, IC DRAM Card |
53G9189 |
|
22 |
Diskette Drive Assembly |
53G9200 |
|
23 |
Keyboard | |
|
24 |
Standby Battery |
44G3799 |
|
For Belgian and Dutch |
49G1149 | |
|
For Swiss |
49G2093 | |
|
25 |
Indicator Assembly (720) |
53G9191 |
|
Indicator Assembly (720C) |
53G9192 | |
|
Standoff LED (720) |
53G9193 | |
|
Standoff LED (720C) |
53G9194 | |
|
26 |
Panel Cover Groups include LED cover, two screws; 2.5 x 8mm, left and right hinge bracket supports, hinge cover end caps and hinge spacers | |
|
26 |
Panel Cover Group (720) |
53G9213 |
|
For Germany (Gray) |
53G9195 | |
|
Panel Cover Group (720C) |
53G9214 | |
|
For Germany (Gray) |
53G9196 | |
|
PCMCIA Door |
53G9199 | |
|
For Germany (Gray) |
53G9216 | |
|
Speaker |
07G1229 | |
|
Holder, Speaker |
44G3786 | |
|
Miscellaneous Parts Group (720) |
53G9197 | |
|
Miscellaneous Parts Group (720C) |
53G9198 | |
|
Parts Group includes | ||
|
Screw Kit |
53G7819 | |
|
Foot Right/Left (w/ springs) |
49G2053 | |
|
For Germany (Gray) |
49G2155 | |
|
AC Adapter (40 W, 3-pin) |
49G2196 | |
|
For Japan (40 W, 2-pin) |
49G2197 | |
|
Cap, TrackPoint II |
54G0439 | |
|
IC DRAM Card Eject Tape |
53G9318 |
|
