Parts Information |
Document ID: JWOE-3LQJXV |

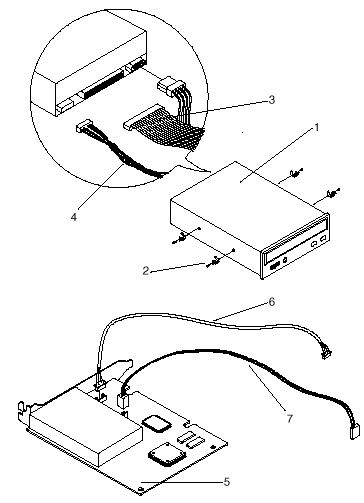

Aptiva - 2137 CD-ROM, modem card service parts
Applicable to: World-Wide
|
|
|
Asm-Index |
FRU Number |
Description |
|
4-1 |
10L6647 |
CD-ROM (24X) |
|
4-1 |
12J6908 |
CD-ROM (20X), API |
|
4-2 |
01K4259 |
Mounting Screw for CD-ROM |
|
4-3 |
01K4224 |
CD-ROM IDE Cable |
|
4-4 |
02K2339 |
CD-ROM Drive Audio Cable |
|
4-5 |
02K2303 |
Modem, GVC 33.6K - D/F/V (UK, ND, SW, DK, FI, NO, BD/BF) |
|
4-5 |
02K2304 |
Modem, GVC 33.6K - D/F/V (FR) |
|
4-5 |
02K2305 |
Modem, GVC 33.66K - D/F/V (IT) |
|
4-5 |
02K2307 |
Modem, GVC 33.6K - D/F/V (GE) |
|
4-5 |
12J6873 |
Modem, GVC 33.6K - D/F/V (SP) |
|
4-5 |
02K2557 |
Modem, GVC 56K - D/F (US/CA) |
|
4-5 |
02K2580 |
Modem, GVC 56K - D/F/V |
|
4-5 |
02K2581 |
Modem, GVC 56K - D/F/V (IT) |
|
4-5 |
02K2582 |
Modem, GVC 56K - D/F/V (FR) |
|
4-5 |
02K2583 |
Modem, GVC 56K - D/F/V (SP) |
|
4-5 |
02K2294 |
Modem, CIS 56K - D/F/V (JP) |
|
4-5 |
02K2295 |
Modem, CIS 56K - D/F/V (US/CA) |
|
4-6 |
02K2308 |
Modem Card Cable |
|
4-7 |
02K2336 |
Modem Ring-In Cable |
|

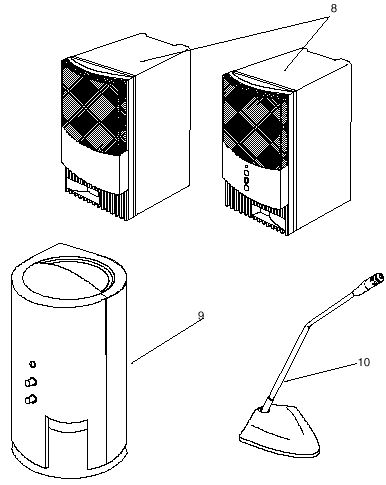

4-8 |
02K0321 |
Speaker, Plastek, 3W (JP) |
|
4-8 |
02K0322 |
Speaker, Jazz, 3W |
|
4-NS |
02K2312 |
Speaker Adapter, 3W, UL/CSA |
|
4-NS |
02K2313 |
Speaker Adapter, 3W, BS |
|
4-NS |
02K2314 |
Speaker Adapter, 3W, TUV/CE |
|
4-NS |
02K2315 |
Speaker Adapter, 3W, T-mark |
|
4-NS |
10L6650 |
Speaker Adapter, 3W (AU) |
|
4-9 |
12J6874 |
Sub-woofer, Jazz, 10W, with BS Adapter |
|
4-9 |
02K2311 |
Sub-Woofer, Jazz, 10W, |
|
4-NS |
12J6878 |
Sub-Woofer Adapter-Jazz 10W, BS |
|
4-NS |
02K2319 |
Sub-Woofer Adapter-Jazz 10W, TUV/CE |
|
4-10 |
01K4191 |
Microphone, Unidirectional, Jazz |
|
4-10 |
02K2320 |
Microphone, Noise Cancelling, Andrea |
|
