TP 765D/L - 2030 Keyboard Card

51.704 bytes

Service Hints & Tips

Document ID: LWIK-3PMPSS

TP 765D/L - 2030 Keyboard Card

Applicable to: World-Wide

2030 Keyboard Card
Diskette Drive or CD-ROM Drive (1020)
Battery Pack (1030)
Hard Disk Drive (1040)
Top Cover (1060)
Keyboard Unit (1070)
Palm Rest (2010)
Palm Rest Rear Cover (2020)

Step

Size (quantity)

Memo (torque)

1.

M2.5 x 4 mm (2)

(3 kgcm)

Note: Do not reuse the screw that you removed. Use a new screw and tighten the screw to the torque specification shown.

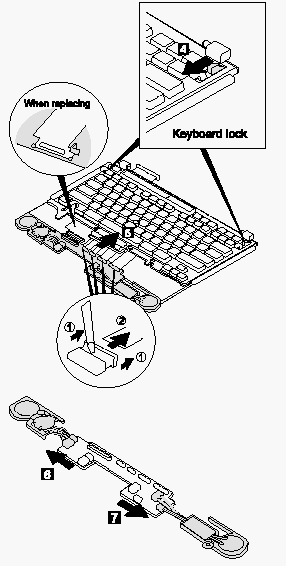

Lock the keyboard in step 4.

Search Keywords

Hint Category

Hardware Maintenance Information

Date Created

10-12-97

Last Updated

19-08-98

Revision Date

18-08-99

Brand

IBM ThinkPad

Product Family

ThinkPad 765L, ThinkPad 765D

Machine Type

9546, 9547

Model

Various

TypeModel

Retain Tip (if applicable)

Reverse Doclinks
and Admin Purposes

Step	Size (quantity)	Memo (torque)
1.	M2.5 x 4 mm (2)	(3 kgcm)

	Search Keywords
	Hint Category	Hardware Maintenance Information
	Date Created	10-12-97
	Last Updated	19-08-98
	Revision Date	18-08-99
	Brand	IBM ThinkPad
	Product Family	ThinkPad 765L, ThinkPad 765D
	Machine Type	9546, 9547
	Model	Various
	TypeModel
	Retain Tip (if applicable)
	Reverse Doclinks and Admin Purposes
