Service Hints & Tips |
Document ID: BMOE-3YLL23 |

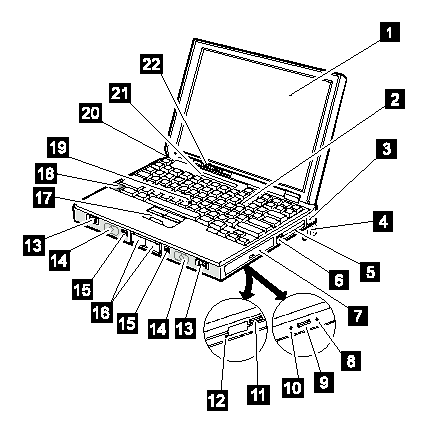

TP 770 - Front view
Applicable to: World-Wide
Front View:
|
1 |
LCD |
|
2 |
Numeric keypad |
|
3 |
Internal modem port |
|
4 |
Legs |
|
5 |
PC Card slots |
|
6 |
PC Card eject button |
|
7 |
UltraBay II |
|
8 |
Emergency eject hole |
|
9 |
Eject button |
|
10 |
Drive-in-use indicator |
|
11 |
Diskette eject button |
|
12 |
Diskette drive-in-use indicator |
|
13 |
Cover release latches |
|
14 |
Stereo speakers |
|
15 |
Release latches |
|
16 |
Bay eject lever |
|
17 |
Click buttons |
|
18 |
Fn key |
|
19 |
TrackPoint |
|
20 |
Built-in microphone |
|
21 |
Indicator panel |
|
22 |
Brightness control knob |
|
Search Keywords |
| |
|
Hint Category |
General Information | |
|
Date Created |
23-09-98 | |
|
Last Updated |
19-01-99 | |
|
Revision Date |
19-01-2000 | |
|
Brand |
IBM ThinkPad | |
|
Product Family |
ThinkPad 770, ThinkPad 770E/ED, ThinkPad 770X | |
|
Machine Type |
9548, 9549, 9544 | |
|
Model |
Various | |
|
