TP 1400 - LCD Assembly Removal

Applicable to: World-Wide

The following information is intended for IBM Dealers and Authorized Servicers only. Customers attempting to follow any of the procedures below may void their warranty.

• Battery Assembly
• Keyboard
• CPU Heatsink

Step	Size (Quantity)	Head & Color	Torque	Memo

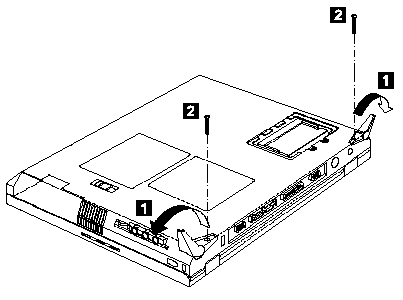

2	M2.5 x 13.5L (2)	Pan head, black	4.5 kgf-cm	w/ nylok paste

Note: Make sure you use the correct screw for replacement.

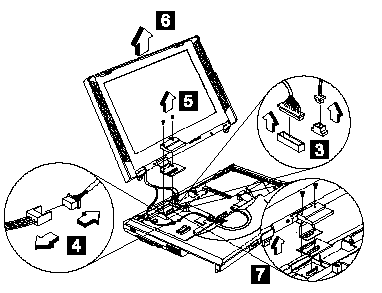

Note: For 13.3" inch LCD models, a LVDS board is additionally installed as shown at 7.

Step	Size (Quantity)	Head & Color	Torque	Memo
5	M2 x 14L (2)	Pan head, silver	1.6 kgf-cm

Note: Make sure you use the correct screw for replacement.
