Service Hints & Tips |
Document ID: EMON-3LLQR6 |
TP 380,385 - PC Card slot support (PCMCIA, Zoomed Video and CardBus)
Applicable to: United States
PC Card Slots on System
The computer has two PC Card slots (upper and lower slot) to install two Type I or Type II PC Cards (one in each slot), a single Type III PC Card (in the lower slot), or a single Zoomed Video port card (in the lower slot).
Note: Zoomed Video is only available through bottom system PC Card slot.
Port Replicator Option (84G1317) PC Card Slots
The Port Replicator supplies two CardBus enabled Type III PC Card slots (left and right slot). Any combination of the following can be used in either slot: Type I, Type II, or Type III PC Cards, CardBus card (only one CardBus card can be installed at a time under Windows 95).
Note: CardBus support is only available through the Port Replicator Option.

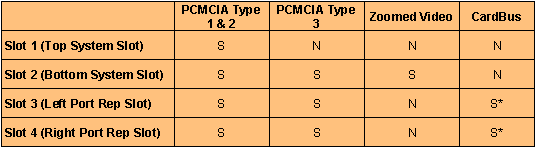

The following chart is provided for further clarification:
N = Not Supported
S = Supported
S* = Only one CardBus card can be installed at a time under Windows '9
|
