Service Hints & Tips |
Document ID: PMYS-3KYG2N |
Aptiva - 2140/2142 Removals and replacements - 3.5-In., 5.25-In. cage
Applicable to: China, Hong Kong, Japan, Australia, Canada, Denmark, Finland, France, Germany, Italy, Netherlands, Norway, Spain, Sweden, United Kingdom, United States

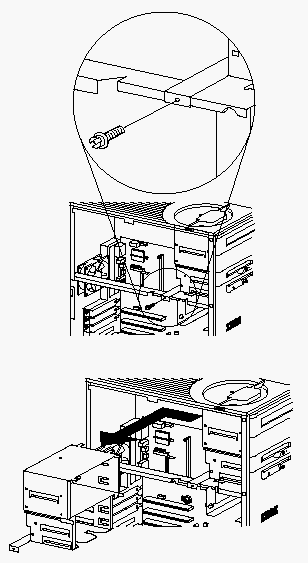

Disconnect any cables on the drive.
Remove the screw.
Pull out the cage.

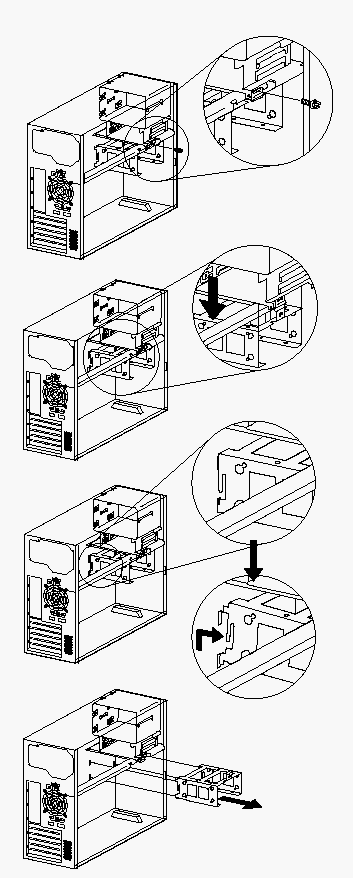

3.5-In., 5.25-In. Cage
3.5-In. Cage
|
