TP 560/E - 1080 Hard Disk Drive
Applicable to: World-Wide
1080 Hard Disk Drive:
|
Warning: |
Do not drop or apply any shock to the hard disk drive. |
|
The hard disk drive is sensitive to physical shock. Incorrect handling can cause damage and permanent loss of data on the hard disk. Before removing the hard disk drive, have the user make a backup copy of all the information on the hard disk. Never remove the hard disk drive while the system is operating or is in suspend mode. |
|
Note: |

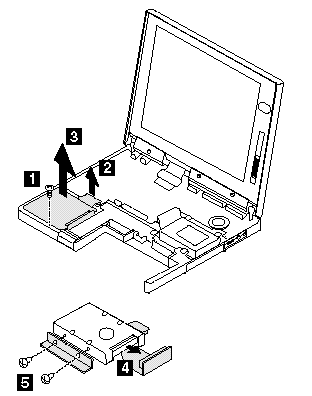

Remove the hard disk drive exactly as shown in the figure. |
|
Do not apply any extra force to the hard disk drive when removing it. |
Battery Pack (1030)
Keyboard Unit (1050)
|
Step |
Length (Quantity) |
Torque |
|
1 |
7 mm, nylon coating (1) |
4.0 kgcm |
|
5 |
3 mm (2) |
3.0 kgcm |
|
Note: |
Do not use the screw that you have removed. |
|
Use a new screw and tighten the screw to the torque specification shown. |
|
