Parts Information |
Document ID: JBAR-3V9RBL |

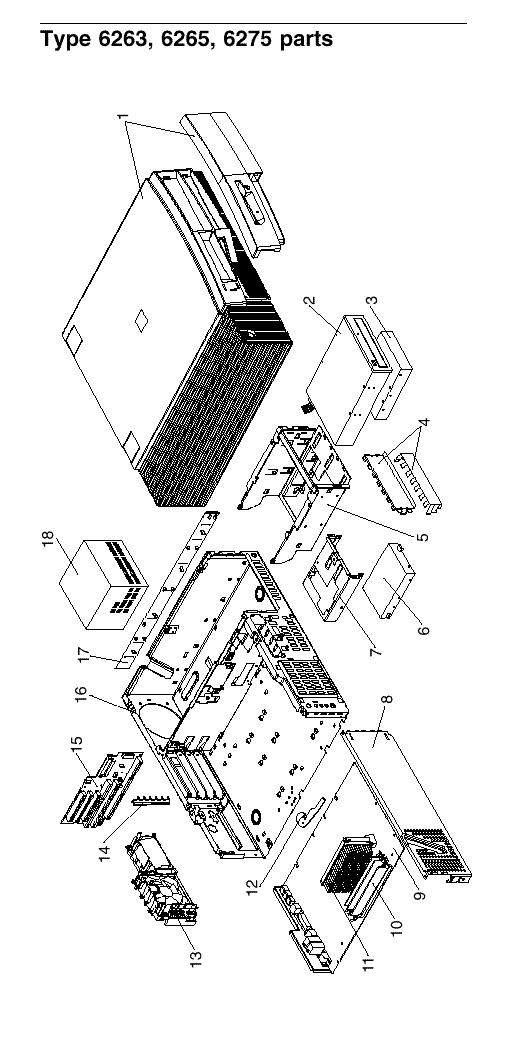

IBM PC300GL (Type 6263, 6265, 6275) - Parts diagram/FRU listing
Applicable to: World-Wide
|
Parts listing | ||
|
Index |
System (Type 6263, 6265, 6275) |
FRU No. |
|
1 |
Cover Assembly |
01K1607 |
|
Name Plate |
03K9645 | |
|
(Order either of the below 32X Max CD-ROM drives) | ||
|
2 |
CD-ROM Drive (32X Max) |
02K1115 |
|
2 |
CD-ROM Drive (32X Max) |
02K3412 |
|
2 |
CD-ROM Drive (40X Max) |
36L8747 |
|
IDE Cable CD-ROM (1-drop) |
03K9724 | |
|
3 |
3.2 GB EIDE Hard Disk Drive |
10L6006 |
|
3 |
4.2 GB EIDE Hard Disk Drive |
36L8675 |
|
3 |
6.4 GB EIDE Hard Disk Drive |
10L6012 |
|
3 |
8.4 GB EIDE Hard Disk Drive |
36L8679 |
|
Hard Disk Cable EIDE |
12J4518 | |
|
4 |
EMC Shields |
76H7338 |
|
5 |
Hard Disk/CD-ROM Cage |
03K9641 |
|
6 |
1.44 MB 3.5-Inch Diskette Drive |
75H9550 |
|
6 |
1.44 MB 3.5-Inch Diskette Drive-Japan |
75H9552 |
|
Diskette Drive Cable |
76H7340 | |
|
7 |
3.5-Inch Diskette Bracket |
76H7330 |
|
8 |
Side Bracket |
76H7329 |
|
9 |
System Board (no processor, memory, rails) |
61H1072 |
|
9 |
System Board (no processor, memory, rails) (for Intel Celeron Processors) |
61H1061 |
|
9 |
System Board (no processor, memory, rails) (for Pentium III Processors) |
61H2347 |
|
System Board Guide Rails, center and front |
03K9626 | |
|
10 |
Memory - 32 MB DIMM, Non-Parity |
01K1146 |
|
10 |
Memory - 64 MB DIMM, Non-Parity |
01K1147 |
|
11 |
Intel Celeron Processor 300 MHz., 128 KB cache |
28L5017 |
|
11 |
Intel Celeron Processor 333 MHz., 128 KB cache |
01K4447 |
|
11 |
Intel Celeron Processor 366 MHz., 128 KB cache |
33L2867 |
|
11 |
Processor Pentium II 300 MHz |
01K4291 |
|
Air Duct (for 300 MHz. Pentium II Processor only) |
03K9648 | |
|
11 |
Processor Pentium II 333 MHz ECC |
01K4390 |
|
11 |
Processor Pentium II 350 MHz |
01K2175 |
|
11 |
Processor Pentium II 400 MHz |
01K4334 |
|
11 |
Processor Pentium II 450 MHz |
01K1578 |
|
11 |
Processor Pentium III 450 MHz |
33L1614 |
|
11 |
Processor Pentium III 500 MHz |
33L1615 |
|
12 |
Latch and Screw |
01K1612 |
|
13 |
Fan/Power Switch Assembly |
03K9647 |
|
14 |
I/O Bracket |
03K9622 |
|
15 |
Riser Card |
11L1566 |
|
Riser Clips, front and rear |
02K2766 | |
|
16 |
Chassis Assembly |
03K9646 |
|
17 |
Side Panel |
76H7333 |
|
18 |
145 Watt Power Supply |
01K9846 |
|
18 |
145 Watt Power Supply - Japan |
01K9848 |
|
Bezel Kit |
76H7339 | |
|
Audio Adapter, GVC |
01K2154 | |
|
Cable, Audio/CDROM |
75H9219 | |
|
Cable, Wake On Ring |
76H7345 | |
|
Foot (4) |
93F2386 | |
|
Jumper Kit |
93F0067 | |
|
Keylock Assembly |
76H7336 | |
|
Lithium Battery |
33F8354 | |
|
Misc. Screw Kit |
93F0041 | |
|
Processor Mounting Bracket Kit |
33L4321 | |
|
Retention Module (RM) adapter (for Celeron and Pentium II processors only) |
33L4320 | |
|
Video Ram 2 MB |
01K1185 |
|
