Service Hints & Tips |
Document ID: MCGN-3YNM3F |
12/24GB DDS/3 4mm Internal SCSI Tape Drive - Cannot set correct SCSI ID
Applicable to: World-Wide
IBM 12/24 GB DDS-3 4mm Internal (SCSI) Tape Drive

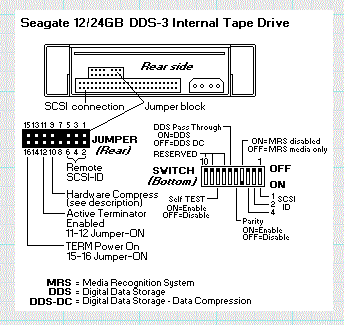

Important ! Some functions are duplicated by both, the JUMPER and DIP-Switches. One or the other should be used per function. DO NOT set both locations to the same function. (i.e. If you set dip switch 1 to ON and install a jumper on pins 5-6, the drive will be set to SCSI ID 5).
Jumper 7, 9 and 10 are reserved and should be left in its factory default setting (OFF).
|
SCSI - ID |
SW-3 |
SW-2 |
SW-1 |
|
0 |
Off |
Off |
Off |
|
1 |
Off |
Off |
ON |
|
2 |
Off |
ON |
Off |
|
3 |
Off |
ON |
ON |
|
4 |
ON |
Off |
Off |
|
5 |
ON |
Off |
ON |
|
6 |
ON |
ON |
Off |
|
7 |
ON |
ON |
ON |
|
Search Keywords |
| |
|
Hint Category |
SCSI, Hardware Installation/Configuration | |
|
Date Created |
25-09-98 | |
|
Last Updated |
24-11-98 | |
|
Revision Date |
18-11-99 | |
|
Brand |
IBM Options, IBM PC Server | |
|
Product Family |
Tape Drives | |
|
Machine Type |
12.x GB | |
|
Model |
01K1282 | |
|
TypeModel |
| |
|
Retain Tip (if applicable) |
| |
|
Reverse Doclinks |
