IBM 3153 ASCII Terminal Display - Diagram of the modular RJ Keyboard Connector
Applicable to: World-Wide

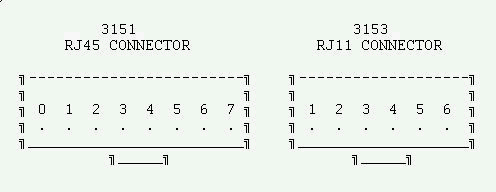

The 3151 and 3153 keyboards are not interchangeable. The following is a diagram of the modular RJ keyboard connector:
|
PIN |
3151 NAME |
PIN |
3153 NAME |
|
0 |
NO CONNECTION |
1 |
KBD CLOCK |
|
1 |
FRAME GROUND |
2 |
KBD DATA |
|
2 |
+5 |
3 |
RESET*(PULLED UP TO +5V) |
|
3 |
KBD DATA |
4 |
SIGNAL GROUND |
|
4 |
KBD CLOCK |
5 |
+5V |
|
5 |
SIGNAL GROUND |
6 |
FRAME GROUND |
|
6 |
FRAME GROUND | ||
|
7 |
NO CONNECTION |
These pins and connector drawing are relative to the connector on the 3151, 3153 video element. These pins and connectors are not relative to the connector on the keyboard coiled cable.
