Service Hints & Tips |
Document ID: GSMH-3BNJU9 |
TP 701C/CS - Multiport II Locations
Applicable to: World-Wide
Multiport II Locations:

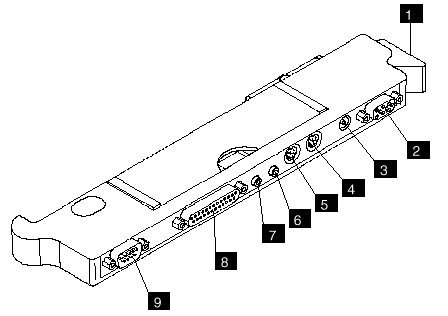

Multiport II (Rear View):
|
1 |
Release Lever |
|
2 |
External Display Port |
|
3 |
AC Adapter Port |
|
4 |
External Mouse/Numeric Keypad Port |
|
5 |
External Keyboard Port |
|
6 |
Audio Out |
|
7 |
Audio In |
|
8 |
Parallel Port |
|
9 |
Serial Port |

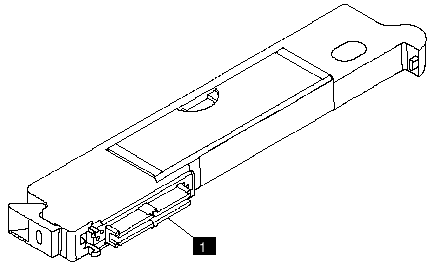

Multiport II (Rear View):
|
1 |
Port connector |
|
