Service Hints & Tips |
Document ID: YAST-3JSR3U |
TP 310,315 - Front View
Applicable to: World-Wide

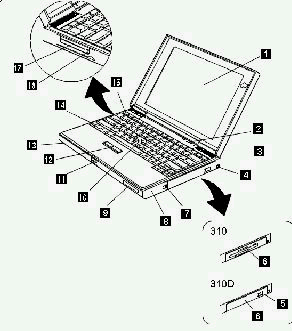

Front View:
1 - LCD.
2 - Indicator panel.
3 - Speakers.
4 - Power switch.
5 - CD-ROM eject button.
6 - CD-ROM drive (310D) or diskette drive (310.)
7 - Battery cover release latch.
8 - Battery bay.
9 - Personalization nameplate.
10 - TrackPoint III.
11 - LCD release latch.
12 - Click buttons.
13 - Hard disk drive bay.
14 - Fn key.
15 - Function keys.
16 - PC Card eject buttons.
17 - PC Card slots.
|
