TP 510 - System Board Connectors
Applicable to: World-Wide

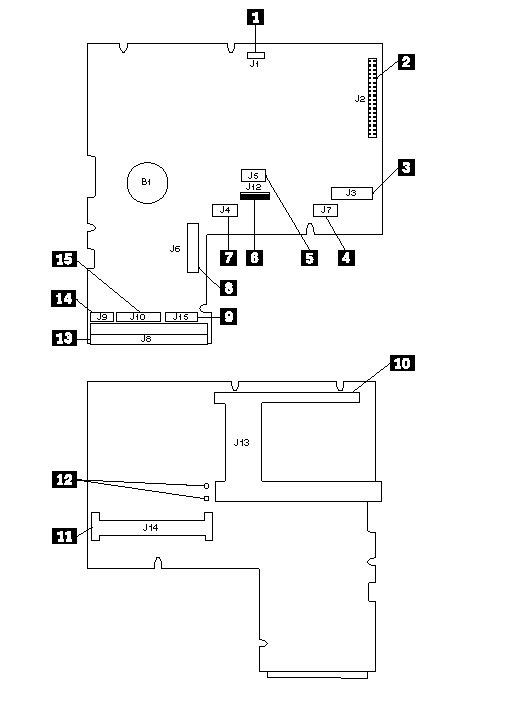

System Board Connectors:
|
1 |
Pointing device connector |
|
2 |
Hard disk drive connector |
|
3 |
Keyboard connector |
|
4 |
LED connector |
|
5 |
Keyboard connector |
|
6 |
Parallel port connector |
|
7 |
Keyboard connector |
|
8 |
Power card connector |
|
9 |
LCD color connector |
|
10 |
PCMCIA connector |
|
11 |
IC DRAM card connector |
|
12 |
PAD1 and PAD2 |
|
13 |
Multiport replicator connector |
|
14 |
LCD power connector |
|
15 |
LCD data connector |
|
Search Keywords |
| |
|
Hint Category |
Hardware Maintenance Information | |
|
Date Created |
07-01-97 | |
|
Last Updated |
15-04-98 | |
|
Revision Date |
09-04-99 | |
|
Brand |
IBM ThinkPad | |
|
Product Family |
ThinkPad 510 | |
|
Machine Type |
2604 | |
|
Model |
Various | |
|
TypeModel |
| |
|
Retain Tip (if applicable) |
N/A | |
|
