Service Hints & Tips |
Document ID: COBN-3HAJZC |
TP 380,385 - Battery pack removal diagram
Applicable to: World-Wide
1010 Battery Pack
1 Turn the computer upside down

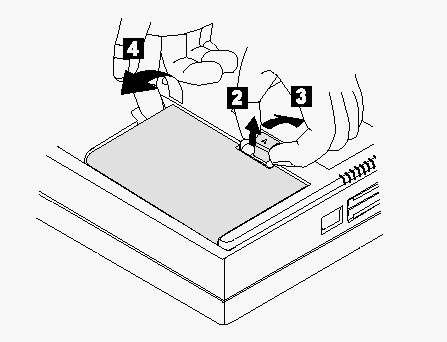

Pull up the battery pack latch 2, push it back 3, and then pull the battery pack 4.
|
Search Keywords |
| |
|
Hint Category |
Power | |
|
Date Created |
21-05-97 | |
|
Last Updated |
06-05-98 | |
|
Revision Date |
28-04-99 | |
|
Brand |
IBM ThinkPad | |
|
Product Family |
ThinkPad 380, ThinkPad 380D, ThinkPad 380E, ThinkPad 380ED, ThinkPad 380XD, ThinkPad 385D, ThinkPad 385E, ThinkPad 385ED, ThinkPad 385XD | |
|
Machine Type |
2635 | |
|
Model |
Various | |
|
TypeModel |
| |
|
Retain Tip (if applicable) |
| |
|
Reverse Doclinks |
