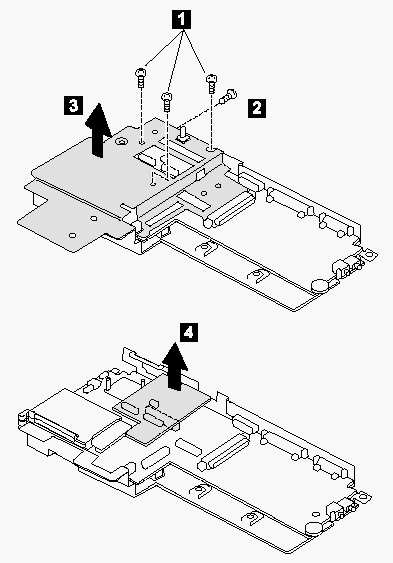

TP 380,385 - Sub Card removal diagram
Applicable to: World-Wide
The following information is intended for IBM Dealers and Authorized Servicers only. Customers attempting to follow any of the procedures below may void their warranty.
1090 Sub Card
Battery Pack (1010)
DIMM Cover (1020)
Keyboard Unit (1030)
CD-ROM/FDD Assembly (1040)
LCD Unit (1070)
Hard Disk Drive (1060)
System Board Assembly (1080)
|
Step |
Location (Quantity) |
Length |
|
1 |
Upper shield (3) |
M 2.5 x 6mm |
|
2 |
Upper shield (1) |
M 2.5 x 8mm |
|
Note: When replacing, make sure you use the correct screw. |
|
