71.835 bytes |
Parts Information |
Document ID: LWIK-46GQKG |

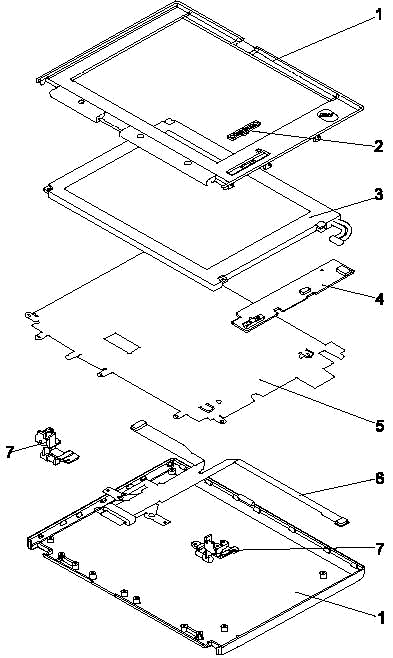

TP 560X - LCD FRU parts listing - TFT 1 (12J1704)
Applicable to: World-Wide
|
Index |
System Unit | |
|
1 |
LCD Cover Set |
05K4602 |
|
2 |
Control Knob |
11J9664 |
|
3 |
LCD Panel |
12J1704 |
|
4 |
Inverter Card |
11J9632 |
|
5 |
Shield Sheet |
46H4165 |
|
6 |
LCD Cable |
12J1705 |
|
7 |
Hinges |
11J9663 |
|
Search Keywords |
| |
|
Document Category |
Service Parts | |
|
Date Created |
30-03-99 | |
|
Last Updated |
30-03-99 | |
|
Revision Date |
| |
|
Brand |
IBM ThinkPad | |
|
Product Family |
ThinkPad 560X | |
|
Machine Type |
2640 | |
|
Model |
Various | |
|
