Parts Information

Document ID: GSMH-3ANHPQ

PC Server 320 - Cables

Applicable to: World-Wide

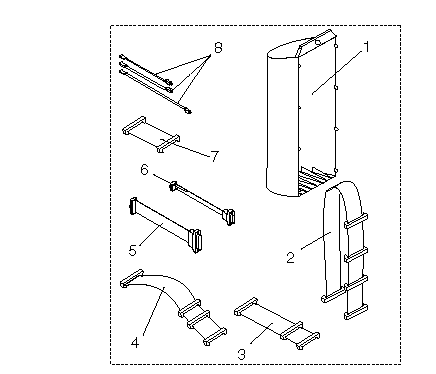

Cables

Index	Cables (PC Server 320 - Type 8640)	Part Number
1	Cable Cover with Lock	06H5072
2	SCSI Hard Disk Drive Fast Cable - 4X (Models 0T0, 0XT, 0Y0, MX0, MXT)	82G3626
	SCSI Hard Disk Drive Fast Cable - 7X (Models 0T0, 0XT, 0YT, MX0, MXT, 0D0, 0DV, 1D0, 1DS, 1Z0)	06H6440
3	SCSI Hard Disk Drive Fast Cable - 2X (Models 1D0, 1DS, 1Y0, 1YT, 1Z0, MY0, MYT, MYR, MD0, MDV, MDS, MZ0, MZ1, MZV)	06H5065
4	Diskette Drive Cable with power	92F0423
5	Parallel DATA Cable	06H2166
6	Serial DATA Cable	06H2165
7	SCSI Fast/Wide Internal/External Port Cable (Models 1D0, 1DS, 1Y0, 1YT, 1Z0)	06H6864
8	LED Cable Assembly	06H8936
	C2 Cable Assembly	06H8767
	DASD Status Cable (Models 1Y0, 1YT, MDS, MZ1, 1D0, 1DS)	06H7766
	Keylock Cable	06H8766
	SCSI Short Cable to I/O Casting (Models MD0, MDV, MDS, MX0, MXT, MY0, MYT, MYR, MZ0, MZ1, MZV)	96G2102

	Search Keywords
	Document Category	Cables
	Date Created	14-08-96
	Last Updated	08-03-99
	Revision Date	08-03-2000
	Brand	IBM PC Server
	Product Family	PC Server 320
	Machine Type	8640
	Model	ALL
